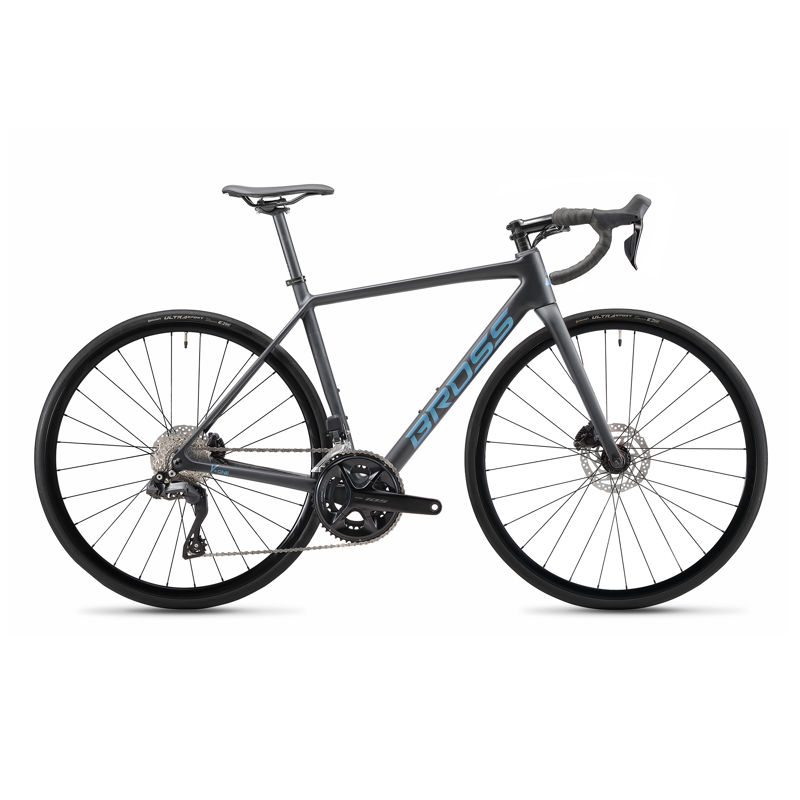

2023 Bross Vagabond geometry
Full frame geometry for the 2023 Bross Vagabond, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS(46) | 506 | 369 | 75.5 | 70.5 | 100 | 500 | 450 | 72 | 575 | 410 | 974 | 45 |
| XS(49) | 519 | 375 | 75.5 | 71.5 | 110 | 509 | 470 | 72 | 576 | 410 | 976 | 45 |
| S(52) | 530 | 380 | 74 | 72 | 120 | 532 | 500 | 72 | 581 | 410 | 980 | 45 |
| M(54) | 551 | 384 | 74 | 72.5 | 140 | 542 | 520 | 72 | 587 | 410 | 986 | 45 |
| L(56) | 571 | 395 | 73.5 | 73 | 160 | 564 | 540 | 72 | 599 | 410 | 988 | 45 |
| XL(58) | 591 | 402 | 73 | 73 | 180 | 577 | 560 | 72 | 612 | 410 | 1011 | 45 |
All measurements in millimetres unless marked (°) for angles.
