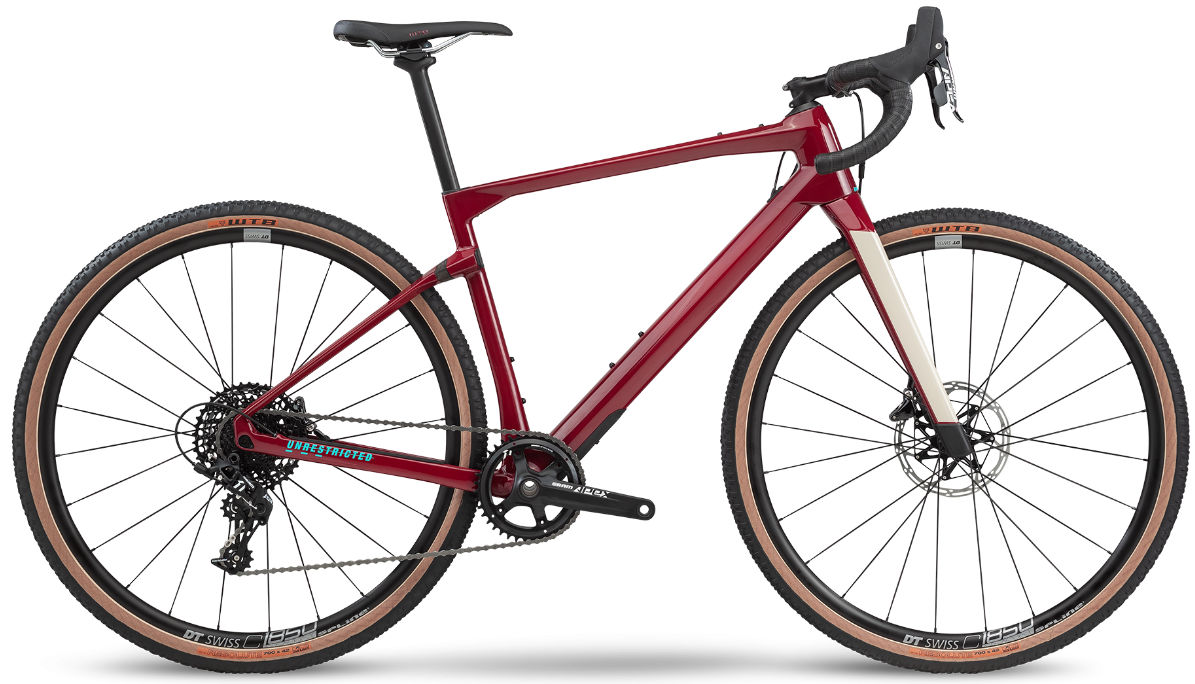

2019 BMC URS geometry
Full frame geometry for the 2019 BMC URS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 538 | 403 | 74 | 70 | 113 | 557 | 431 | 758 | 69 | 625 | 1041 | 45 | 77 |
| M | 569 | 415 | 74 | 70 | 146 | 578 | 459 | 788 | 69 | 648 | 1064 | 45 | 77 |
| L | 603 | 419 | 74 | 70 | 172 | 591 | 492 | 822 | 69 | 665 | 1081 | 45 | 77 |
| XL | 641 | 429 | 74 | 70 | 207 | 612 | 527 | 860 | 69 | 700 | 1105 | 45 | 77 |
All measurements in millimetres unless marked (°) for angles.
