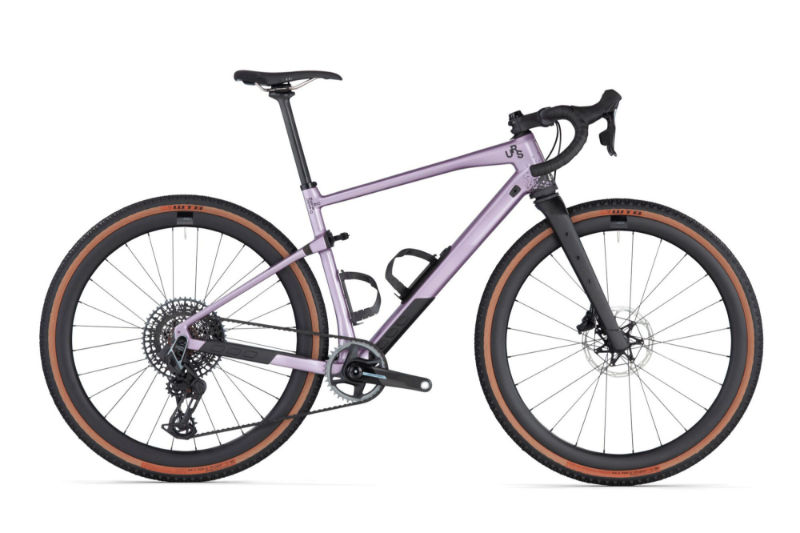

2027 BMC URS 01 LT geometry
Full frame geometry for the 2027 BMC URS 01 LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 560 | 400 | 74.5 | 69 | 133 | 555 | 445 | 735 | 76 | 643 | 430 | 1062 | 50 | 84 |
| XS | 560 | 390 | 74.5 | 69 | 133 | 545 | 430 | 727 | 76 | 633 | 430 | 1052 | 50 | 84 |
| M | 580 | 410 | 74.5 | 69.5 | 140 | 571 | 475 | 758 | 76 | 651 | 430 | 1070 | 45 | 86 |
| L | 610 | 420 | 74.5 | 69.5 | 172 | 589 | 505 | 778 | 76 | 672 | 430 | 1091 | 45 | 86 |
| XL | 640 | 430 | 74.5 | 69.5 | 204 | 607 | 540 | 795 | 76 | 693 | 430 | 1112 | 45 | 86 |
All measurements in millimetres unless marked (°) for angles.
