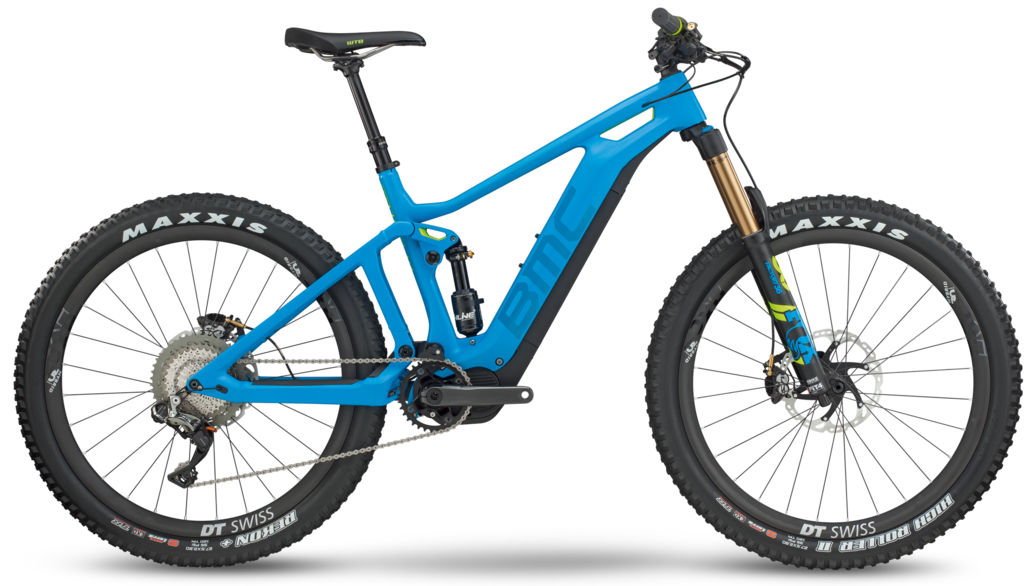

2017 BMC Trailfox AMP geometry
Full frame geometry for the 2017 BMC Trailfox AMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 405 | 74 | 66 | 91 | 573 | 400 | 745 | 17 | 715 | 445 | 1162 | 51 | 103 |
| M | 606 | 445 | 74 | 66 | 103 | 616 | 440 | 730 | 17 | 760 | 445 | 1207 | 51 | 103 |
| L | 620 | 469 | 74 | 66 | 118 | 645 | 480 | 771 | 17 | 791 | 445 | 1238 | 51 | 103 |
All measurements in millimetres unless marked (°) for angles.
