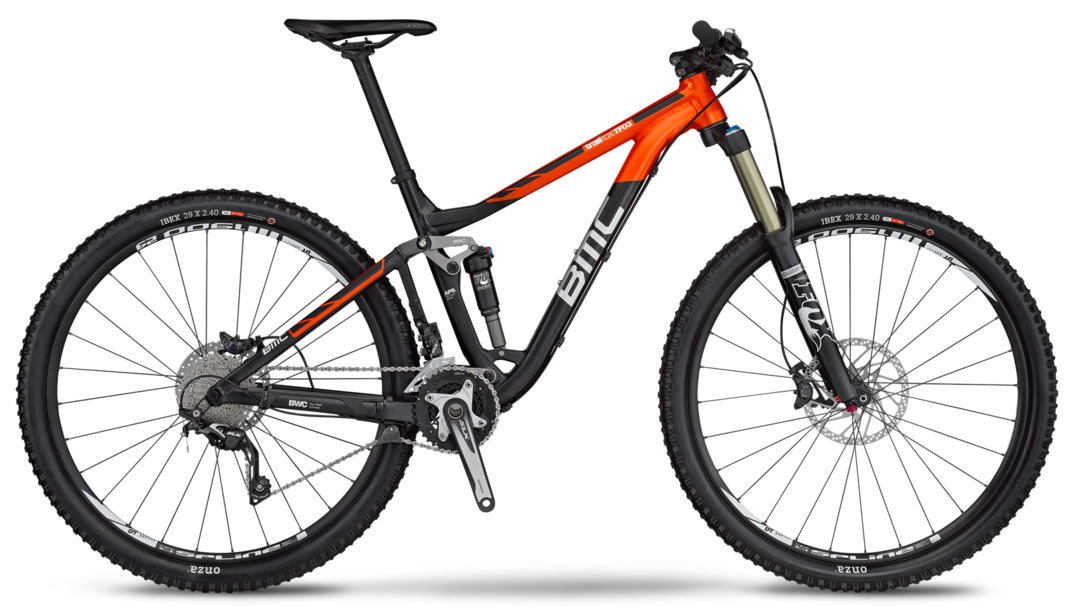

2015 BMC trailfox Aluminium geometry
Full frame geometry for the 2015 BMC trailfox Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 610 | 410 | 74 | 67 | 90 | 585 | 400 | 845 | 30 | 712 | 438 | 1145 | 51 | 101 |
| M | 615 | 435 | 74 | 67 | 95 | 611 | 440 | 868 | 30 | 739 | 435 | 1173 | 51 | 101 |
| L | 619 | 460 | 74 | 67 | 100 | 638 | 480 | 891 | 30 | 766 | 435 | 1200 | 51 | 101 |
All measurements in millimetres unless marked (°) for angles.
