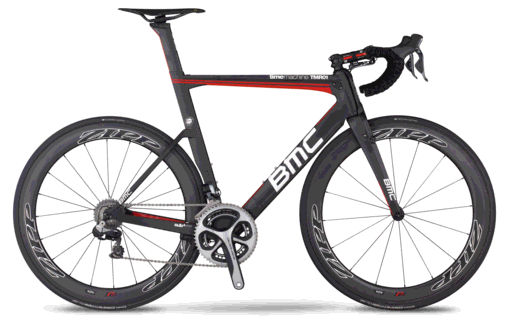

2015 BMC TMR01 MK I geometry
Full frame geometry for the 2015 BMC TMR01 MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 370 | 74 | 70.5 | 109 | 515 | 524 | 782 | 69 | 573 | 405 | 968 | 42 | 75 |
| 51 | 525 | 378 | 74 | 72 | 125 | 529 | 546 | 804 | 69 | 574 | 405 | 969 | 42 | 66 |
| 54 | 545 | 386 | 74 | 72.5 | 144 | 542 | 567 | 825 | 69 | 584 | 405 | 979 | 42 | 63 |
| 56 | 560 | 392 | 74 | 72.5 | 160 | 553 | 583 | 840 | 69 | 595 | 405 | 990 | 42 | 63 |
| 58 | 580 | 400 | 74 | 72.5 | 181 | 566 | 603 | 861 | 69 | 609 | 405 | 1004 | 42 | 63 |
| 61 | 605 | 410 | 74 | 72.5 | 207 | 583 | 629 | 887 | 69 | 627 | 405 | 1022 | 42 | 63 |
All measurements in millimetres unless marked (°) for angles.
