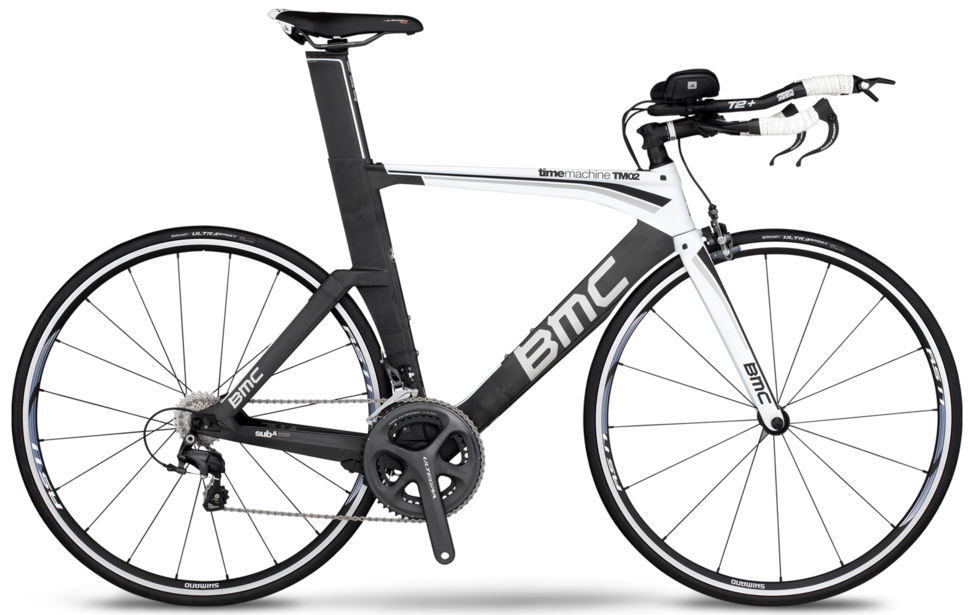

2015 BMC TM02 MKI geometry
Full frame geometry for the 2015 BMC TM02 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 480 | 393 | 77 | 71.5 | 97 | 503 | 505 | 767 | 58 | 586 | 380 | 958 | 45 | 64 |
| M-L | 515 | 418 | 77 | 71.5 | 123 | 537 | 540 | 793 | 68 | 619 | 380 | 989 | 45 | 64 |
| M-S | 515 | 377 | 77 | 71.5 | 123 | 496 | 540 | 793 | 68 | 578 | 380 | 948 | 45 | 64 |
| L | 556 | 442 | 77 | 71.5 | 165 | 575 | 583 | 835 | 68 | 656 | 380 | 1026 | 45 | 64 |
All measurements in millimetres unless marked (°) for angles.
