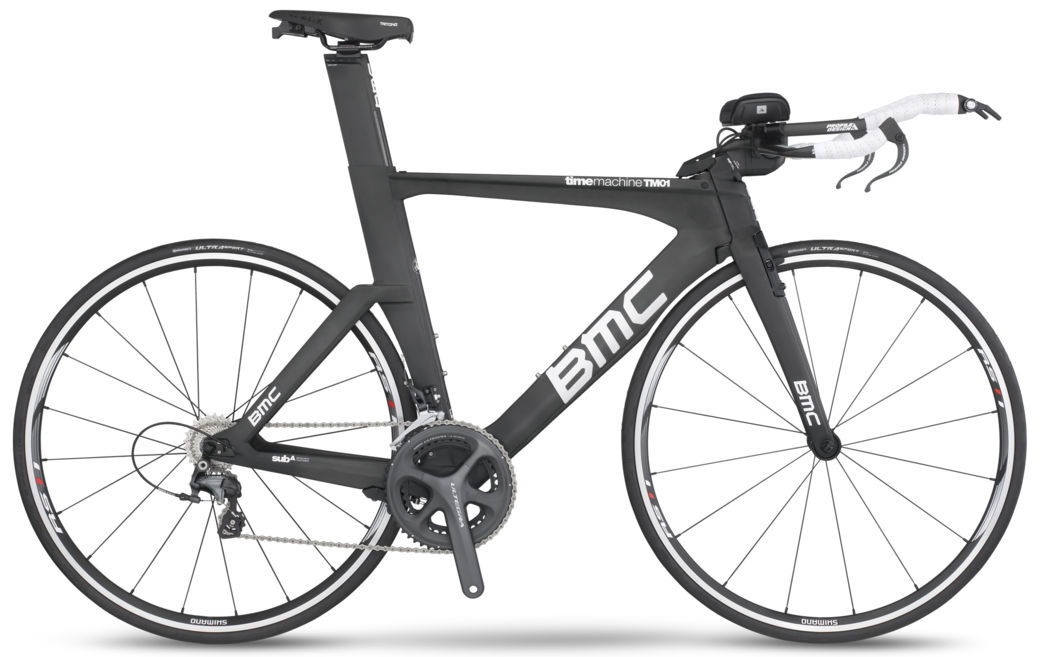

2013 BMC TM01 MKI geometry
Full frame geometry for the 2013 BMC TM01 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 480 | 393 | 77 | 71.5 | 97 | 504 | 503 | 766 | 58 | 590 | 390 | 971 | 50 | 60 |
| M-L | 515 | 418 | 77 | 71.5 | 123 | 537 | 540 | 793 | 68 | 624 | 390 | 1004 | 50 | 60 |
| M-S | 515 | 377 | 77 | 71.5 | 123 | 496 | 540 | 793 | 68 | 583 | 390 | 964 | 50 | 60 |
| L | 556 | 442 | 77 | 71.5 | 166 | 570 | 582 | 835 | 68 | 662 | 390 | 1042 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
