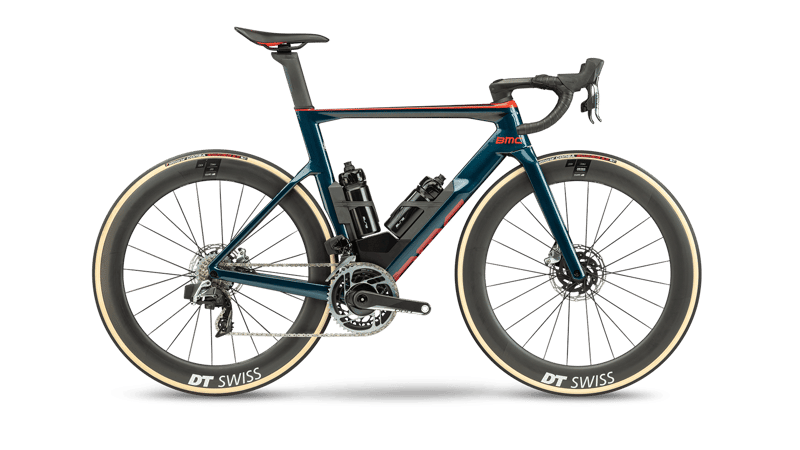

2022 BMC Timemachine Road geometry
Full frame geometry for the 2022 BMC Timemachine Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 496 | 373 | 73.5 | 71.2 | 88 | 520 | 480 | 70 | 577 | 410 | 975 | 50 | 62 |
| 51 | 520 | 381 | 73.5 | 71.2 | 113 | 535 | 518 | 70 | 592 | 410 | 991 | 50 | 62 |
| 54 | 540 | 390 | 73.5 | 72 | 135 | 550 | 548 | 70 | 594 | 410 | 994 | 45 | 62 |
| 56 | 555 | 395 | 73.5 | 72 | 150 | 560 | 568 | 70 | 604 | 410 | 1004 | 45 | 62 |
| 58 | 574 | 405 | 73.5 | 72 | 170 | 575 | 588 | 70 | 620 | 410 | 1020 | 45 | 62 |
| 61 | 598 | 413 | 73.5 | 72 | 196 | 590 | 611 | 70 | 636 | 410 | 1036 | 45 | 62 |
All measurements in millimetres unless marked (°) for angles.
