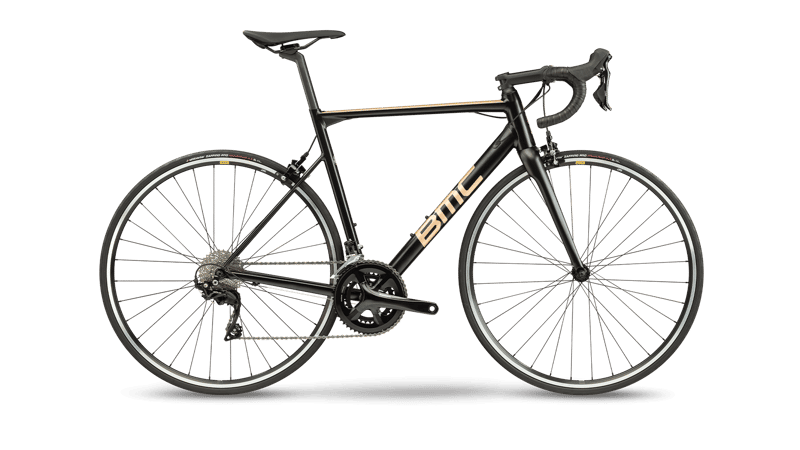

2022 BMC Teammachine ALR geometry
Full frame geometry for the 2022 BMC Teammachine ALR , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 515 | 365 | 73.5 | 70.5 | 118 | 518 | 442 | 69 | 571 | 410 | 971 | 41.6 | 76 |
| 51 | 539 | 374 | 73.5 | 72 | 138 | 534 | 505 | 69 | 575 | 410 | 975 | 41.6 | 66 |
| 54 | 559 | 383 | 73.5 | 72.5 | 157 | 549 | 535 | 69 | 585 | 410 | 985 | 41.6 | 63 |
| 57 | 583 | 391 | 73.5 | 72.5 | 182 | 564 | 565 | 69 | 601 | 410 | 1001 | 41.6 | 63 |
| 60 | 610 | 402 | 73.5 | 72.5 | 210 | 583 | 600 | 69 | 0.6 | 410 | 1020 | 41.6 | 63 |
All measurements in millimetres unless marked (°) for angles.
