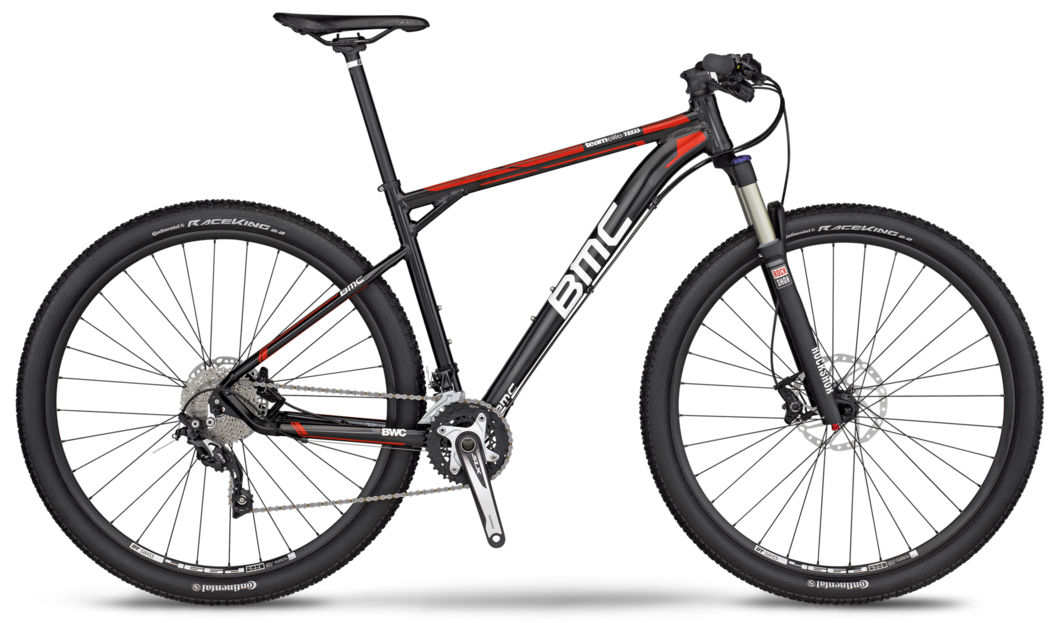

2015 BMC teamelite Aluminium MK I geometry
Full frame geometry for the 2015 BMC teamelite Aluminium MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 594 | 377 | 73.5 | 70 | 90 | 553 | 400 | 802 | 65 | 620 | 440 | 1060 | 51 | 80 |
| S | 610 | 405 | 73.5 | 70 | 90 | 586 | 445 | 834 | 65 | 653 | 440 | 1094 | 51 | 80 |
| M | 620 | 425 | 73.5 | 70 | 100 | 609 | 485 | 860 | 65 | 677 | 440 | 1127 | 51 | 80 |
| L | 630 | 445 | 73.5 | 70 | 110 | 632 | 535 | 891 | 65 | 700 | 440 | 1142 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
