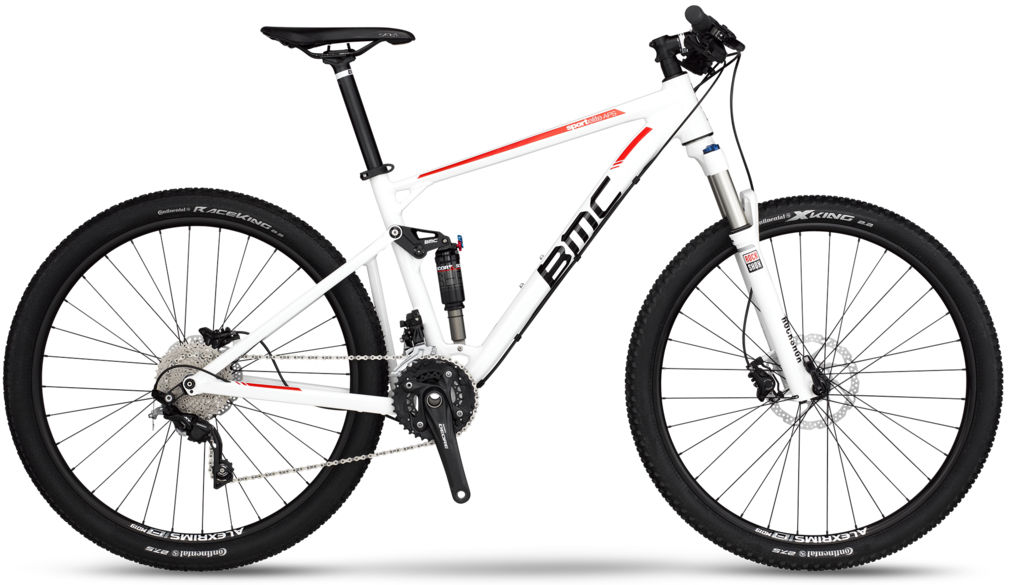

2016 BMC Sportelite APS 27.5 geometry
Full frame geometry for the 2016 BMC Sportelite APS 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 573 | 395 | 73.5 | 69 | 100 | 569 | 380 | 748 | 20 | 655 | 435 | 1095 | 42 | 87 |
| S | 583 | 415 | 73.5 | 69 | 110 | 590 | 400 | 757 | 20 | 678 | 435 | 1115 | 42 | 87 |
| M | 590 | 435 | 73.5 | 69 | 117 | 610 | 430 | 780 | 20 | 701 | 435 | 1135 | 42 | 87 |
| L | 598 | 460 | 73.5 | 69 | 125 | 635 | 480 | 813 | 20 | 729 | 435 | 1160 | 42 | 87 |
All measurements in millimetres unless marked (°) for angles.
