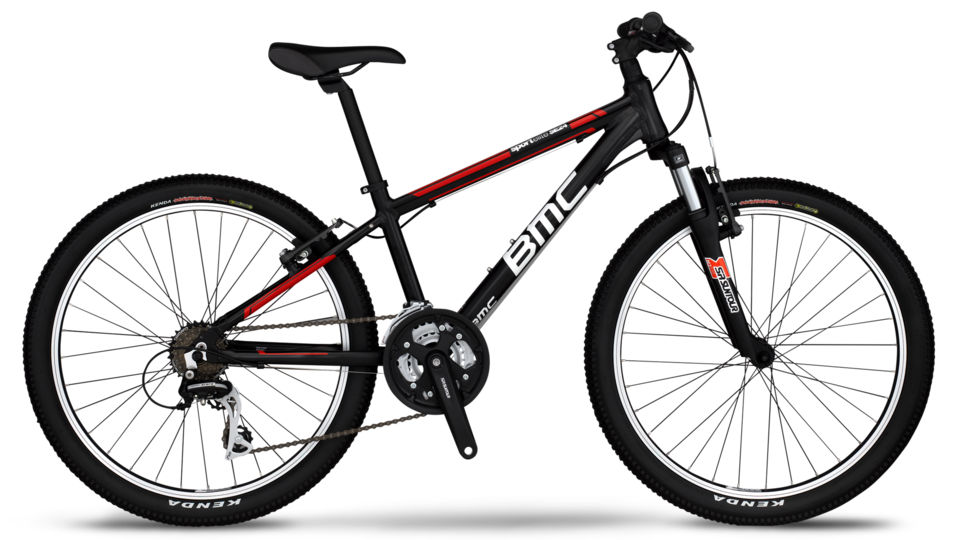

2015 BMC sportelite 24 geometry
Full frame geometry for the 2015 BMC sportelite 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J24 | 476 | 357 | 72 | 71 | 100 | 515 | 320 | 20 | 562 | 410 | 971 | 42 | 59 |
All measurements in millimetres unless marked (°) for angles.
