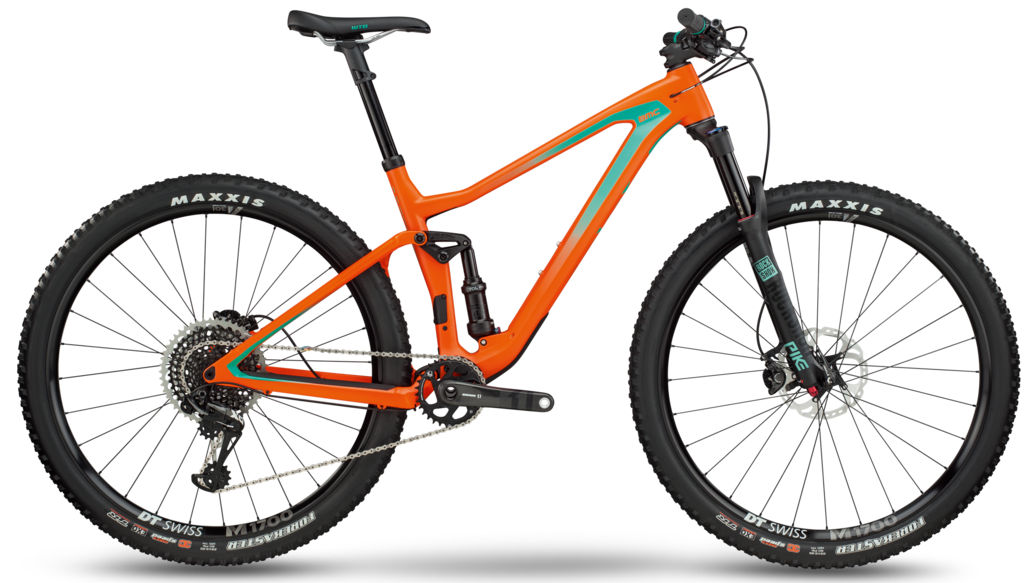

2017 BMC Speedfox Trailsync C geometry
Full frame geometry for the 2017 BMC Speedfox Trailsync C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 584 | 413 | 73.2 | 67.5 | 110 | 587 | 410 | 695 | 22 | 685 | 430 | 1111 | 46 | 98 |
| M (27.5) | 595 | 436 | 73.2 | 67.5 | 120 | 613 | 430 | 722 | 22 | 712 | 430 | 1138 | 46 | 98 |
| M (29) | 610 | 430 | 73.2 | 68.2 | 105 | 611 | 440 | 734 | 37 | 704 | 445 | 1145 | 51 | 98 |
| L (29) | 620 | 450 | 73.2 | 68.2 | 115 | 634 | 480 | 752 | 37 | 728 | 445 | 1169 | 51 | 98 |
| XL (29) | 635 | 465 | 73.2 | 68.2 | 135 | 653 | 510 | 773 | 37 | 748 | 445 | 1189 | 51 | 98 |
All measurements in millimetres unless marked (°) for angles.
