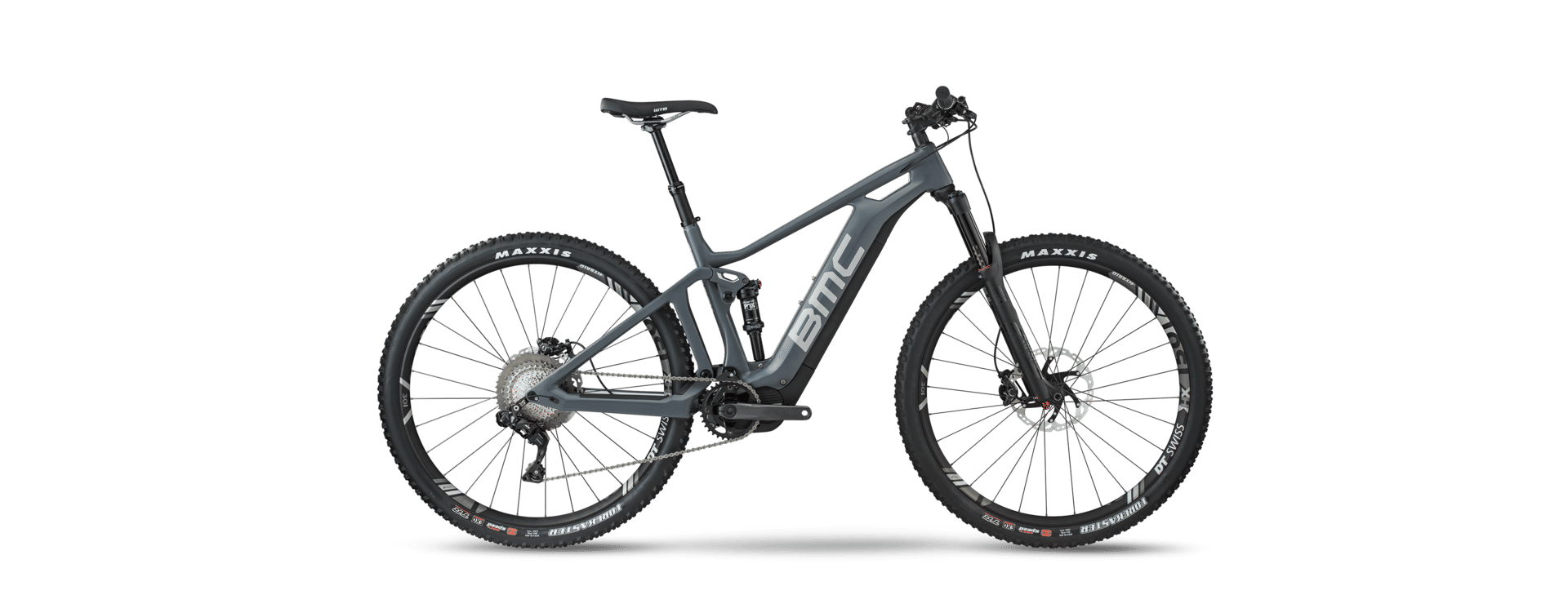

2017 BMC Speedfox AMP geometry
Full frame geometry for the 2017 BMC Speedfox AMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598 | 401 | 74 | 66 | 92 | 572 | 400 | 760 | 33 | 711 | 450 | 1159 | 51 | 110 |
| M | 605 | 445 | 74 | 66 | 103 | 619 | 440 | 765 | 35 | 752 | 450 | 1202 | 51 | 107 |
| L | 618 | 472 | 74 | 66 | 118 | 648 | 480 | 770 | 35 | 784 | 450 | 1233 | 51 | 107 |
All measurements in millimetres unless marked (°) for angles.
