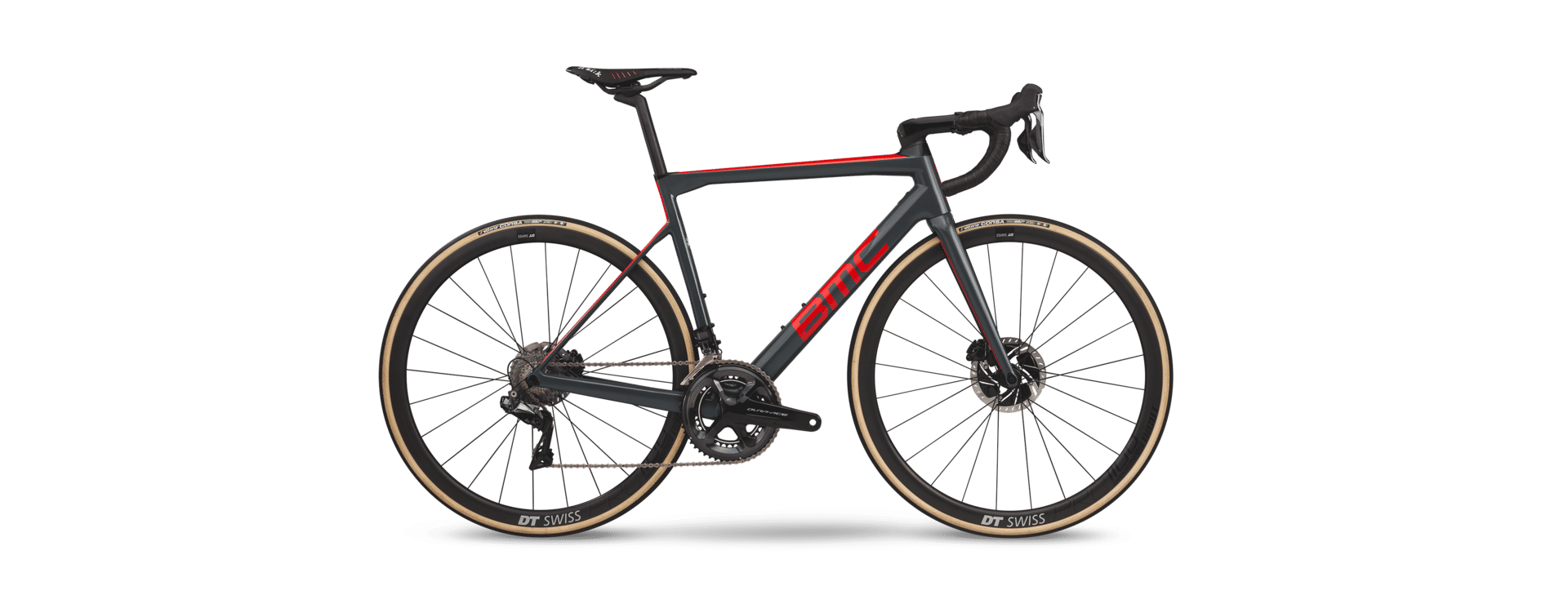

2019 BMC SLR01 Disc geometry
Full frame geometry for the 2019 BMC SLR01 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 367 | 73.5 | 70.5 | 113 | 517 | 423 | 726 | 69 | 570 | 410 | 970 | 42 | 76 |
| 51 | 530 | 377 | 73.5 | 72 | 133 | 535 | 468 | 754 | 69 | 575 | 410 | 975 | 42 | 66 |
| 54 | 550 | 386 | 73.5 | 72.5 | 153 | 550 | 513 | 779 | 69 | 587 | 410 | 986 | 42 | 63 |
| 56 | 565 | 392 | 73.5 | 72.5 | 168 | 560 | 534 | 797 | 69 | 596 | 410 | 996 | 42 | 63 |
| 58 | 584 | 401 | 73.5 | 72.5 | 188 | 575 | 554 | 814 | 69 | 611 | 410 | 1012 | 42 | 63 |
| 61 | 608 | 409 | 73.5 | 72.5 | 213 | 590 | 584 | 843 | 69 | 627 | 410 | 1027 | 42 | 63 |
All measurements in millimetres unless marked (°) for angles.
