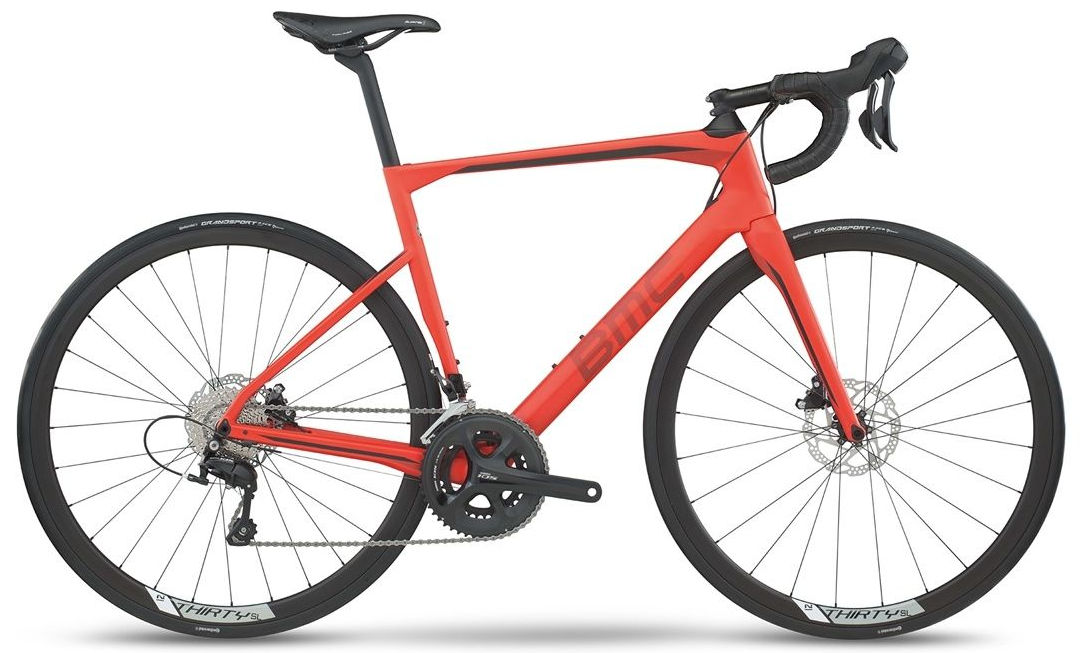

2016 BMC Road Machine 02 MKI geometry
Full frame geometry for the 2016 BMC Road Machine 02 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 514 | 375 | 74.2 | 71.2 | 95 | 522 | 420 | 717 | 71 | 584 | 410 | 983 | 50 | 63 |
| 51 | 539 | 378 | 74.2 | 71.2 | 122 | 532 | 464 | 757 | 71 | 595 | 410 | 995 | 50 | 63 |
| 54 | 560 | 387 | 74.2 | 72 | 138 | 546 | 507 | 786 | 71 | 597 | 410 | 997 | 45 | 63 |
| 56 | 574 | 393 | 74.2 | 72 | 154 | 556 | 522 | 803 | 71 | 608 | 410 | 1008 | 45 | 63 |
| 58 | 593 | 400 | 74.2 | 72 | 173 | 568 | 539 | 820 | 71 | 622 | 410 | 1022 | 45 | 63 |
| 61 | 617 | 407 | 74.2 | 72 | 198 | 583 | 573 | 849 | 71 | 636 | 410 | 1036 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
