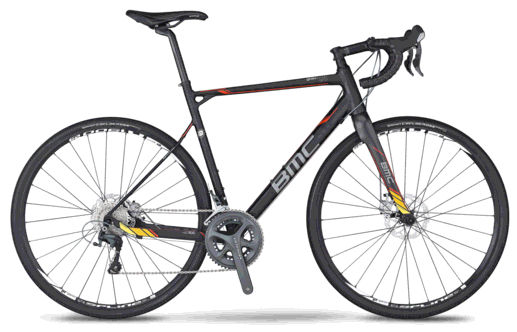

2015 BMC GF02 Disc geometry
Full frame geometry for the 2015 BMC GF02 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 527 | 354 | 73 | 70.5 | 110 | 515 | 480 | 773 | 68 | 568 | 425 | 984 | 45 | 72 |
| 51 | 542 | 359 | 73 | 71 | 125 | 525 | 510 | 796 | 68 | 574 | 425 | 990 | 45 | 69 |
| 54 | 559 | 369 | 73 | 71.5 | 140 | 540 | 540 | 820 | 68 | 585 | 425 | 1000 | 45 | 66 |
| 56 | 578 | 378 | 73 | 71.5 | 160 | 556 | 560 | 840 | 68 | 600 | 425 | 1016 | 45 | 66 |
| 58 | 595 | 388 | 73 | 72 | 176 | 570 | 580 | 859 | 68 | 610 | 425 | 1026 | 45 | 63 |
| 61 | 613 | 398 | 73 | 72 | 195 | 595 | 610 | 884 | 68 | 626 | 425 | 1041 | 45 | 63 |
All measurements in millimetres unless marked (°) for angles.
