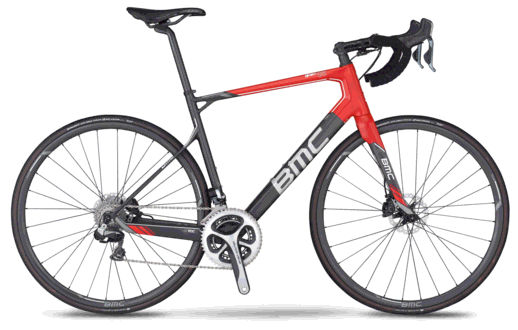

2015 BMC GF01 Disc geometry
Full frame geometry for the 2015 BMC GF01 Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 528 | 356 | 73.5 | 71 | 125 | 512 | 452 | 755 | 71 | 570 | 412 | 972 | 50 | 64 |
| 51 | 546 | 365 | 73.5 | 71.5 | 143 | 527 | 475 | 776 | 71 | 580 | 412 | 982 | 50 | 60 |
| 54 | 563 | 375 | 73.5 | 72 | 159 | 542 | 495 | 795 | 71 | 592 | 412 | 993 | 50 | 57 |
| 56 | 580 | 384 | 73.5 | 72 | 177 | 556 | 510 | 811 | 71 | 606 | 412 | 1008 | 50 | 57 |
| 58 | 599 | 395 | 73.5 | 72.5 | 196 | 572 | 530 | 831 | 71 | 623 | 412 | 1025 | 50 | 54 |
| 61 | 621 | 406 | 73.5 | 72.5 | 220 | 590 | 550 | 852 | 71 | 641 | 412 | 1041 | 50 | 54 |
All measurements in millimetres unless marked (°) for angles.
