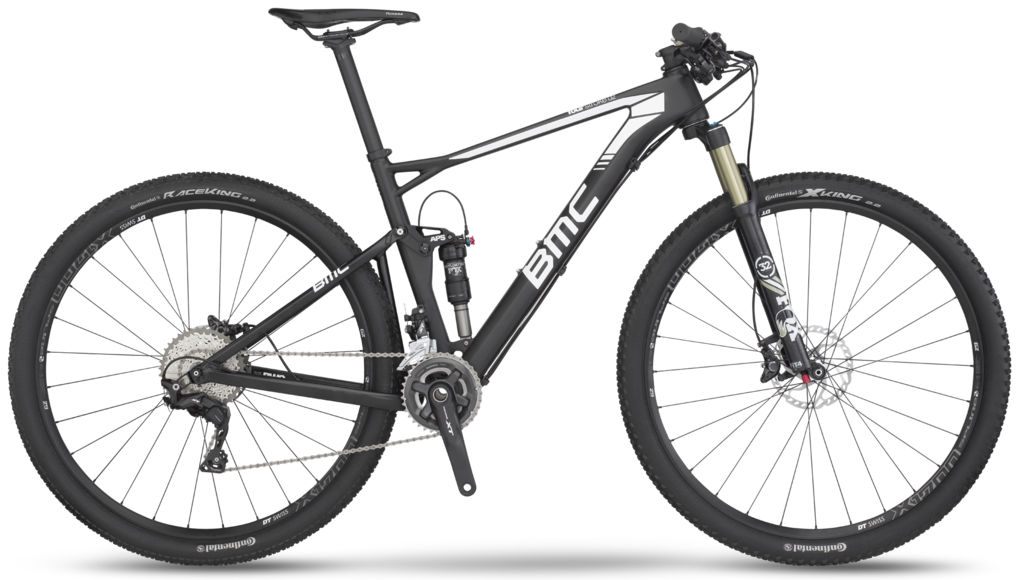

2016 BMC FS02 geometry
Full frame geometry for the 2016 BMC FS02, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 412 | 73.5 | 70 | 90 | 585 | 759 | 40 | 659 | 445 | 1101 | 51 | 80 |
| M | 595 | 434 | 73.5 | 70 | 100 | 610 | 791 | 40 | 684 | 445 | 1126 | 51 | 80 |
| L | 605 | 456 | 73.5 | 70 | 110 | 635 | 820 | 40 | 709 | 445 | 1151 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
