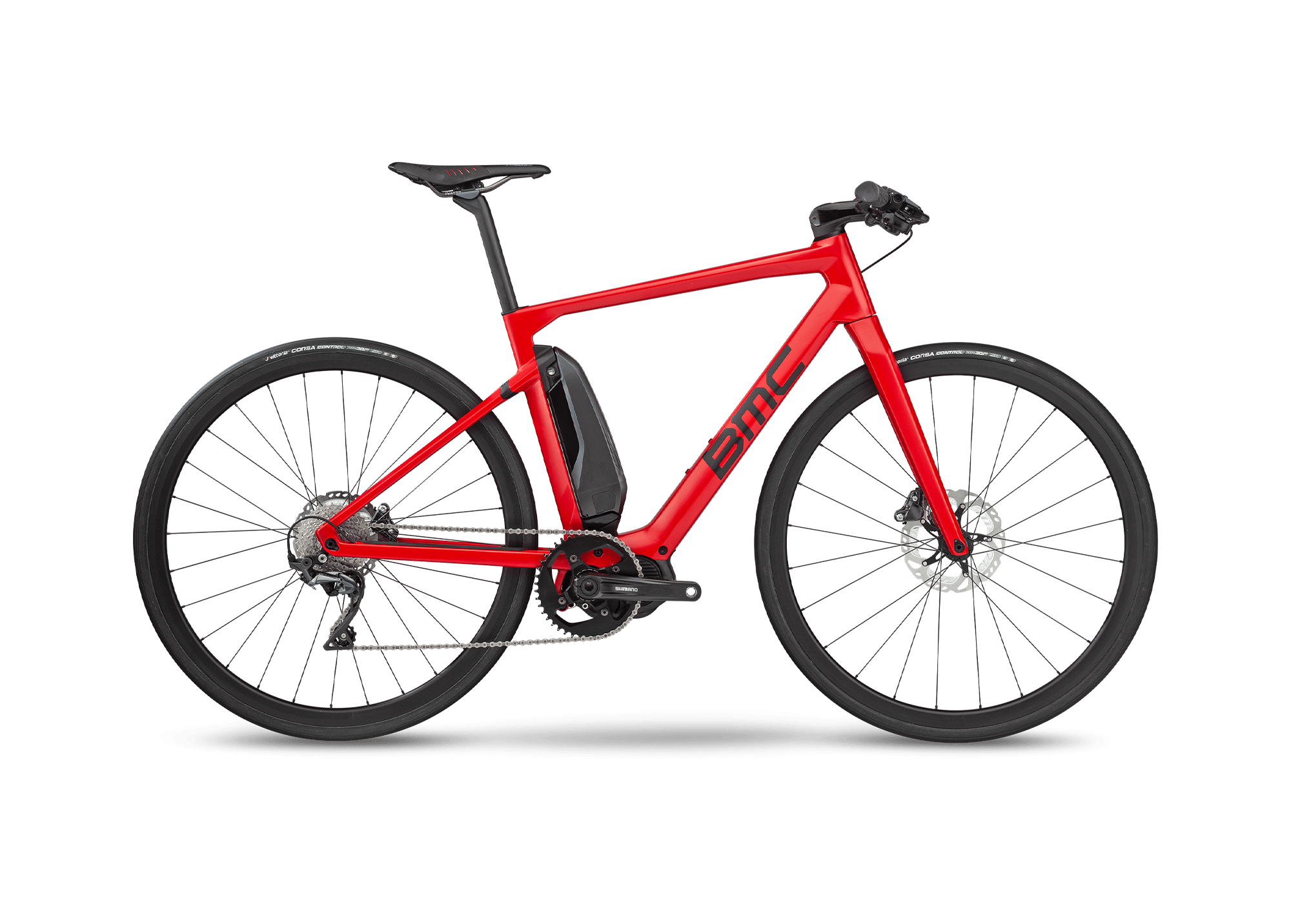

2019 BMC Alpenchallenge AMP geometry
Full frame geometry for the 2019 BMC Alpenchallenge AMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 565 | 380 | 73.5 | 71.5 | 120 | 548 | 443 | 745 | 70 | 592 | 435 | 1024 | 45 | 70 |
| M | 600 | 405 | 73.5 | 72 | 157 | 583 | 480 | 777 | 70 | 628 | 435 | 1053 | 45 | 65 |
| L | 635 | 425 | 73.5 | 72 | 193 | 608 | 538 | 823 | 70 | 659 | 435 | 1085 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
