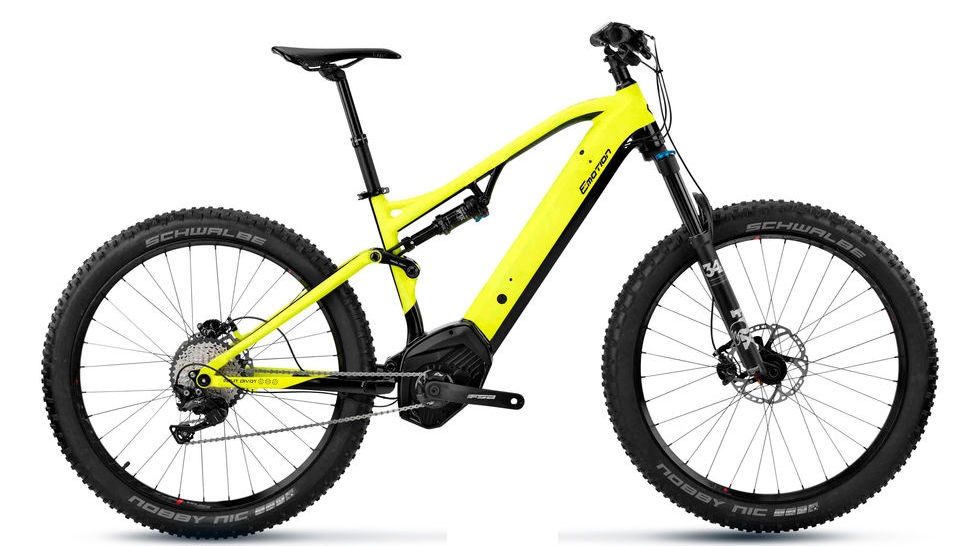

2018 BH Xenion Lynx 5 geometry
Full frame geometry for the 2018 BH Xenion Lynx 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| L | 632 | 448 | 74 | 68 | 140 | 629 | 480 | 747 | 485 |
| M | 632 | 430 | 74 | 68 | 140 | 611 | 440 | 729 | 485 |
All measurements in millimetres unless marked (°) for angles.
