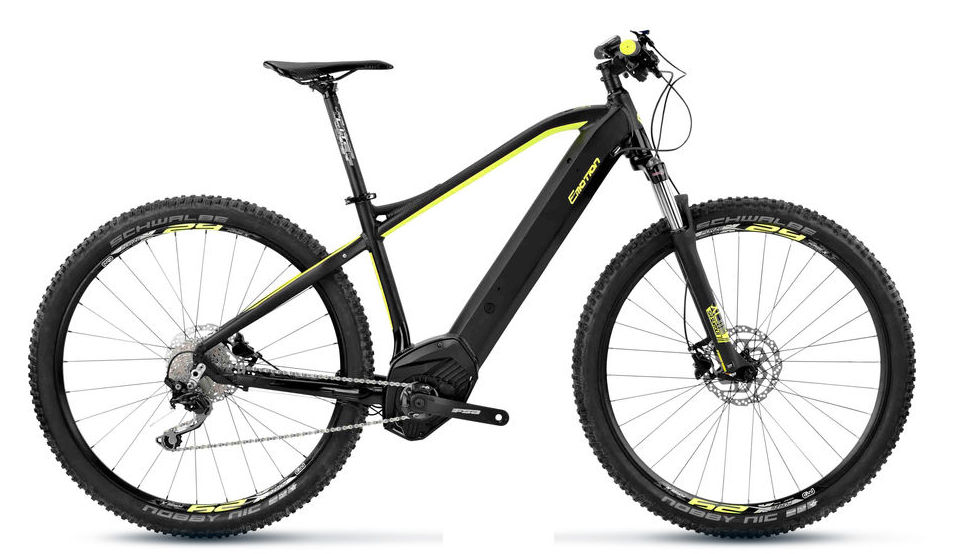

2018 BH Xenion 29 geometry
Full frame geometry for the 2018 BH Xenion 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 415 | 73 | 69 | 130 | 596 | 400 | 678 | 455 |
| M | 620 | 430 | 73 | 69 | 140 | 614 | 450 | 697 | 455 |
| L | 630 | 445 | 73 | 69 | 150 | 631 | 500 | 715 | 455 |
All measurements in millimetres unless marked (°) for angles.
