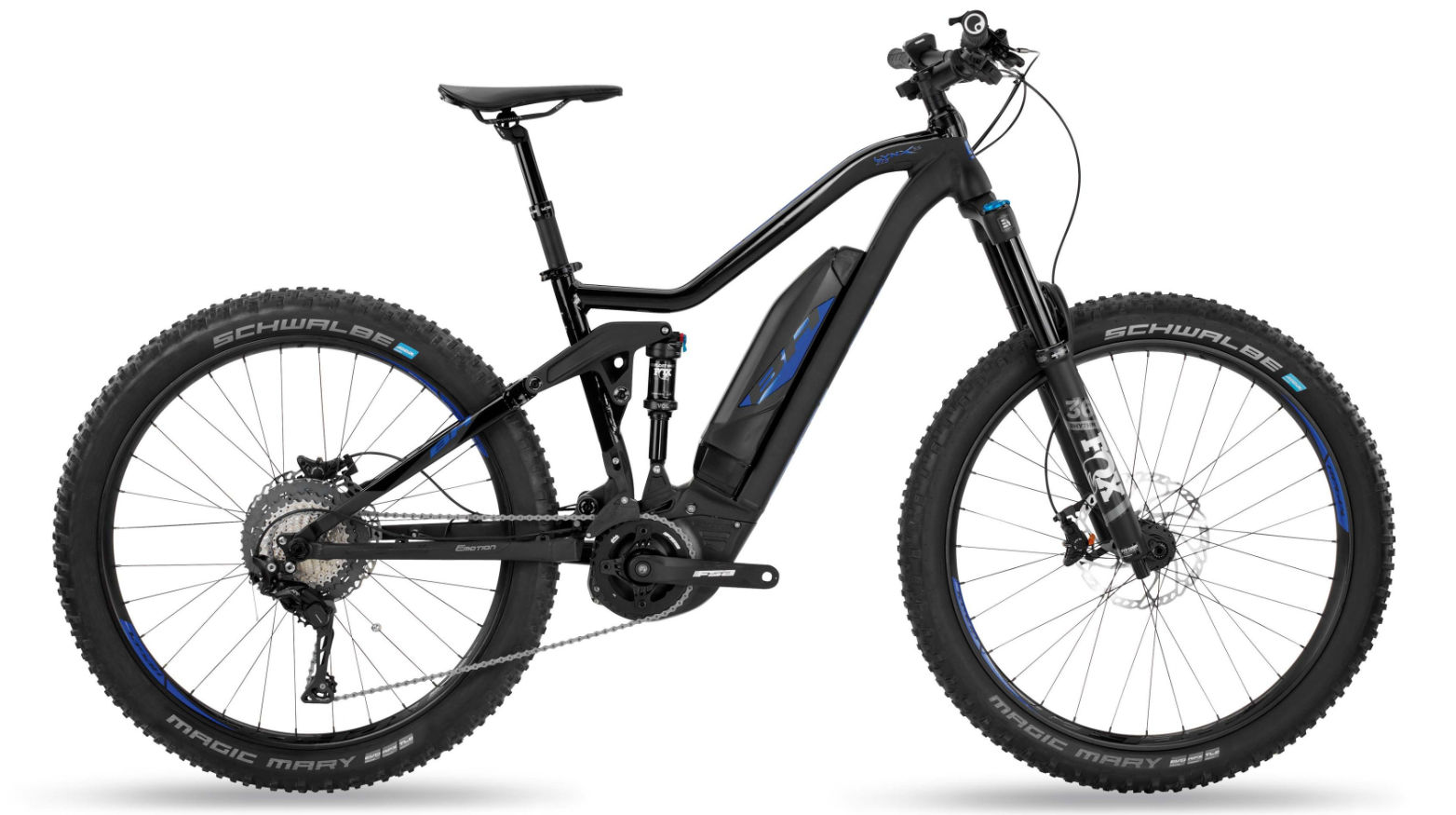

2018 BH Rebel Lynx 5.5 geometry
Full frame geometry for the 2018 BH Rebel Lynx 5.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 632 | 428 | 74 | 67 | 120 | 609 | 440 | 733 | 485 |
| L | 646 | 449 | 74 | 67 | 135 | 635 | 480 | 760 | 485 |
All measurements in millimetres unless marked (°) for angles.
