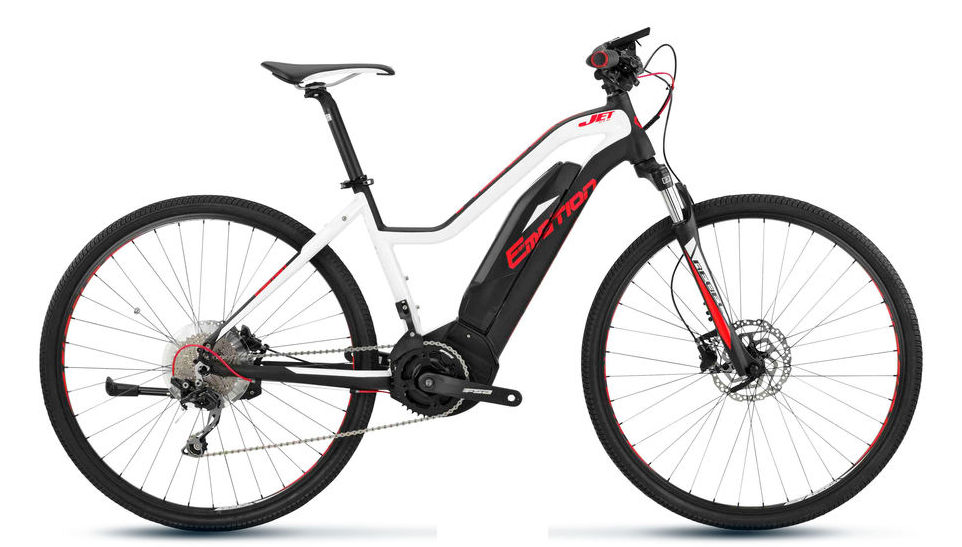

2018 BH Rebel Jet Lite geometry
Full frame geometry for the 2018 BH Rebel Jet Lite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 559 | 410 | 73 | 71 | 140 | 586 | 440 | 645 | 470 |
| L | 569 | 422 | 73 | 71 | 150 | 595 | 480 | 655 | 470 |
All measurements in millimetres unless marked (°) for angles.
