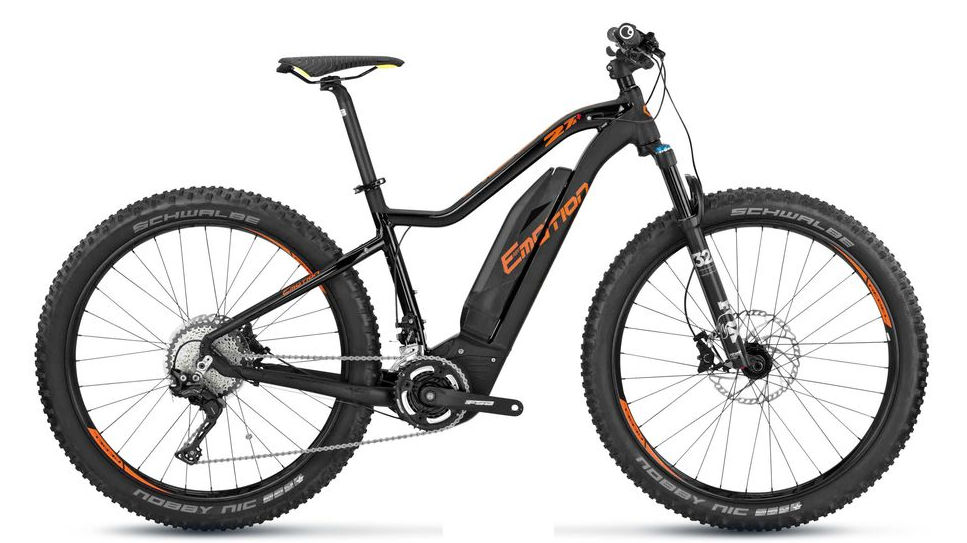

2018 BH Rebel 27.5 geometry
Full frame geometry for the 2018 BH Rebel 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 617 | 390 | 73 | 70 | 110 | 575 | 400 | 650 | 475 |
| M | 623 | 405 | 73 | 69.5 | 110 | 590 | 450 | 666 | 475 |
| L | 641 | 420 | 73 | 69.5 | 120 | 613 | 510 | 692 | 475 |
All measurements in millimetres unless marked (°) for angles.
