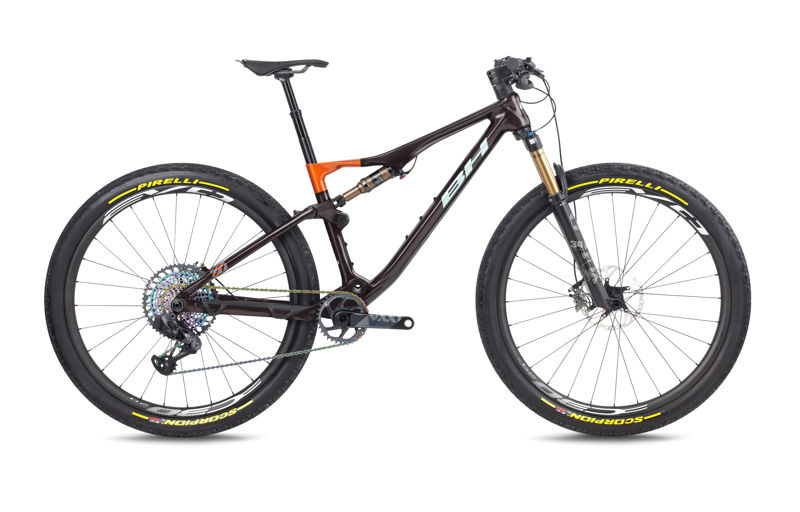

2023 BH Lynx Race geometry
Full frame geometry for the 2023 BH Lynx Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MD | 589 | 445 | 76 | 67 | 90 | 600 | 420 | 40 | 430 | 1159 |
| SM | 589 | 420 | 76 | 67 | 90 | 575 | 400 | 40 | 430 | 1133 |
| LA | 620 | 470 | 76 | 67 | 100 | 606 | 460 | 40 | 430 | 1170 |
| XL | 644 | 490 | 76 | 67 | 120 | 651 | 500 | 40 | 430 | 1212 |
All measurements in millimetres unless marked (°) for angles.
