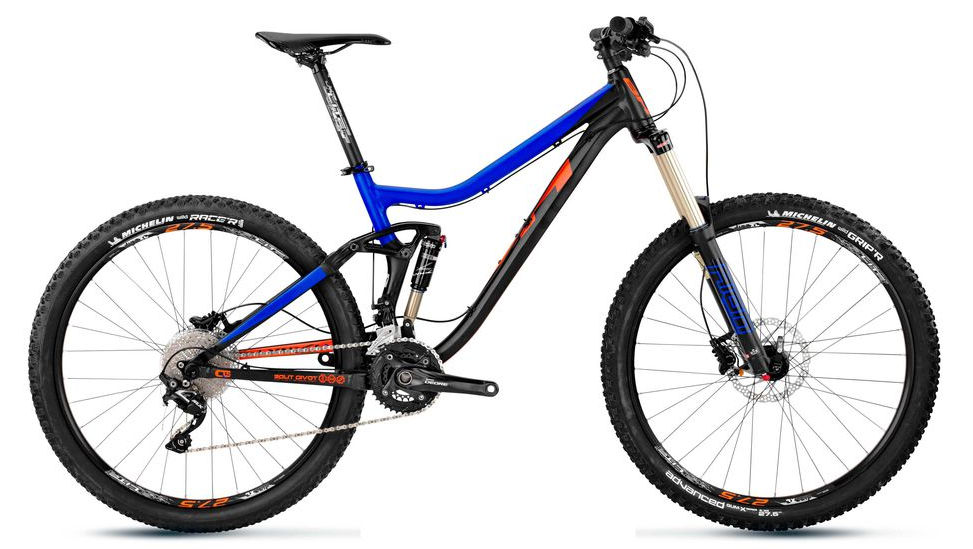

2018 BH Lynx 6 27.5 Aluminium geometry
Full frame geometry for the 2018 BH Lynx 6 27.5 Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 596 | 400 | 73 | 66.9 | 100 | 585 | 380 | 18 | 430 |
| M | 606 | 412 | 73 | 66.9 | 100 | 615 | 440 | 18 | 430 |
| L | 615 | 426 | 73 | 66.9 | 120 | 630 | 480 | 18 | 430 |
| XL | 624 | 438 | 73 | 66.9 | 130 | 645 | 530 | 18 | 430 |
All measurements in millimetres unless marked (°) for angles.
