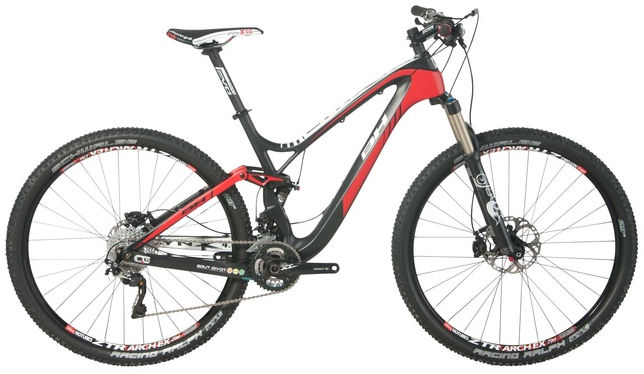

2015 BH Lynx 4.8 29 Carbon geometry
Full frame geometry for the 2015 BH Lynx 4.8 29 Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 386 | 73 | 68.4 | 100 | 570 | 400 | 20 | 430 |
| M | 610 | 414 | 73 | 68.4 | 110 | 600 | 440 | 20 | 430 |
| L | 623 | 429 | 73 | 68.4 | 125 | 620 | 480 | 20 | 430 |
| XL | 642 | 444 | 73 | 68.4 | 145 | 640 | 530 | 20 | 430 |
All measurements in millimetres unless marked (°) for angles.
