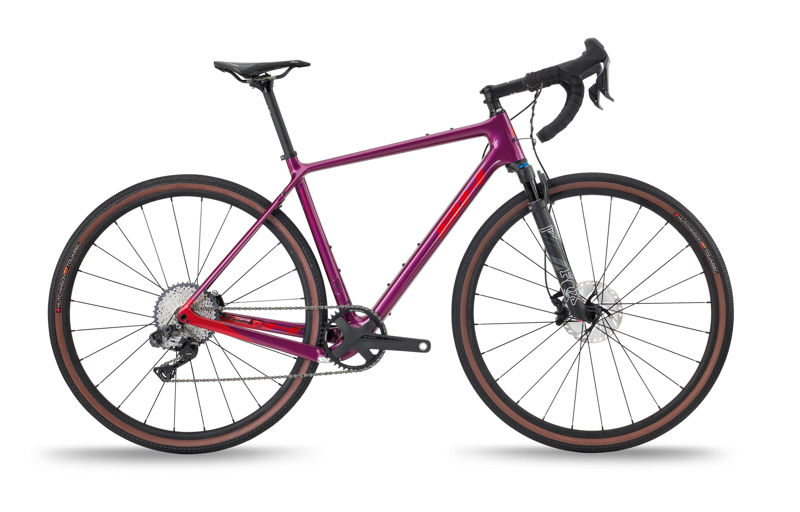

2022 BH GravelX EVO geometry
Full frame geometry for the 2022 BH GravelX EVO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| SM | 517.5 | 366 | 72.5 | 69.5 | 100 | 529 | 460 | 425 |
| MD | 546.7 | 377.9 | 72.5 | 71.1 | 125 | 550 | 490 | 425 |
| LA | 575.7 | 390 | 72.5 | 72.5 | 150 | 571 | 520 | 425 |
| XL | 604.1 | 402.1 | 72.5 | 72.5 | 180 | 592 | 550 | 425 |
All measurements in millimetres unless marked (°) for angles.
