2018 BH · EUSD

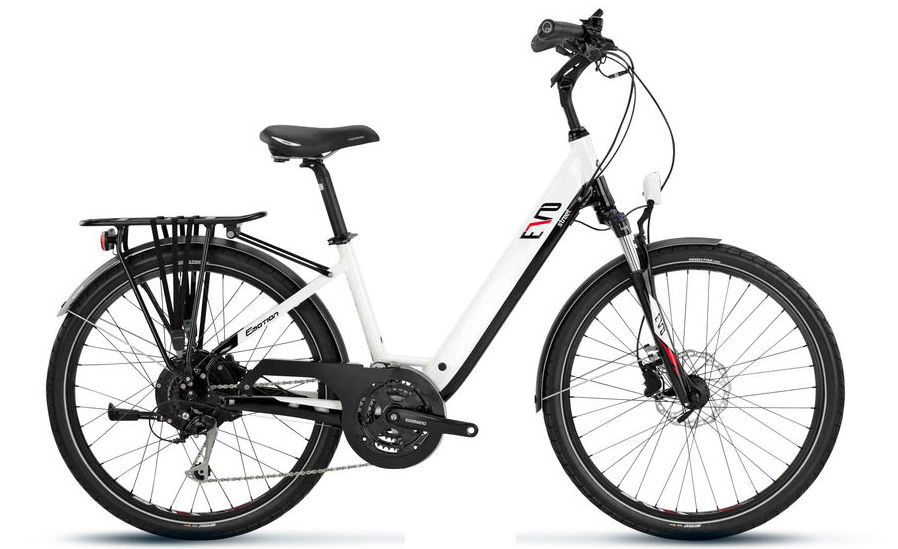

2018 BH EVO Street Pro geometry
Full frame geometry for the 2018 BH EVO Street Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 608 | 401 | 73 | 70 | 160 | 589 | 410 | 650 | 445 |
All measurements in millimetres unless marked (°) for angles.
