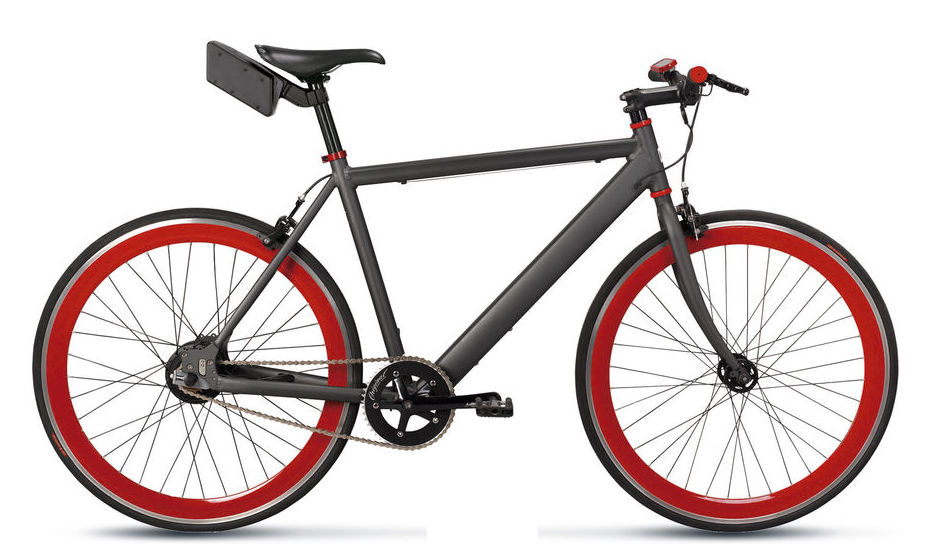

2018 BH EasyGo Race geometry
Full frame geometry for the 2018 BH EasyGo Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 561 | 424 | 76 | 71 | 140 | 559 | 490 | 630 | 408 |
| L | 584 | 428 | 74 | 72 | 160 | 595 | 550 | 630 | 408 |
All measurements in millimetres unless marked (°) for angles.
