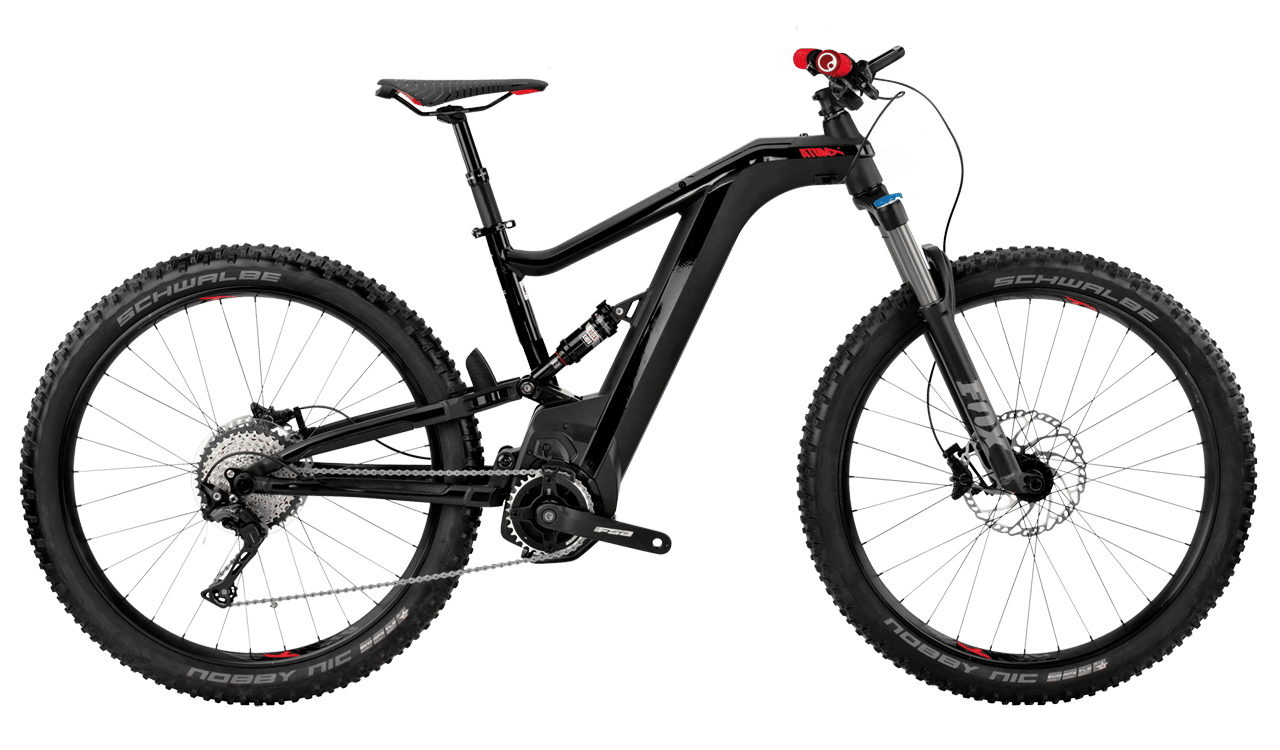

2018 BH Atom X Lynx 5 geometry
Full frame geometry for the 2018 BH Atom X Lynx 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 415 | 75 | 68 | 115 | 581 | 420 | 465 | 1162 |
| M | 611 | 424 | 75 | 68 | 115 | 592 | 450 | 465 | 1174 |
| L | 613 | 445 | 75 | 68 | 120 | 613 | 480 | 465 | 1193 |
| XL | 634 | 455 | 75 | 68 | 120 | 631 | 510 | 465 | 1204 |
All measurements in millimetres unless marked (°) for angles.
