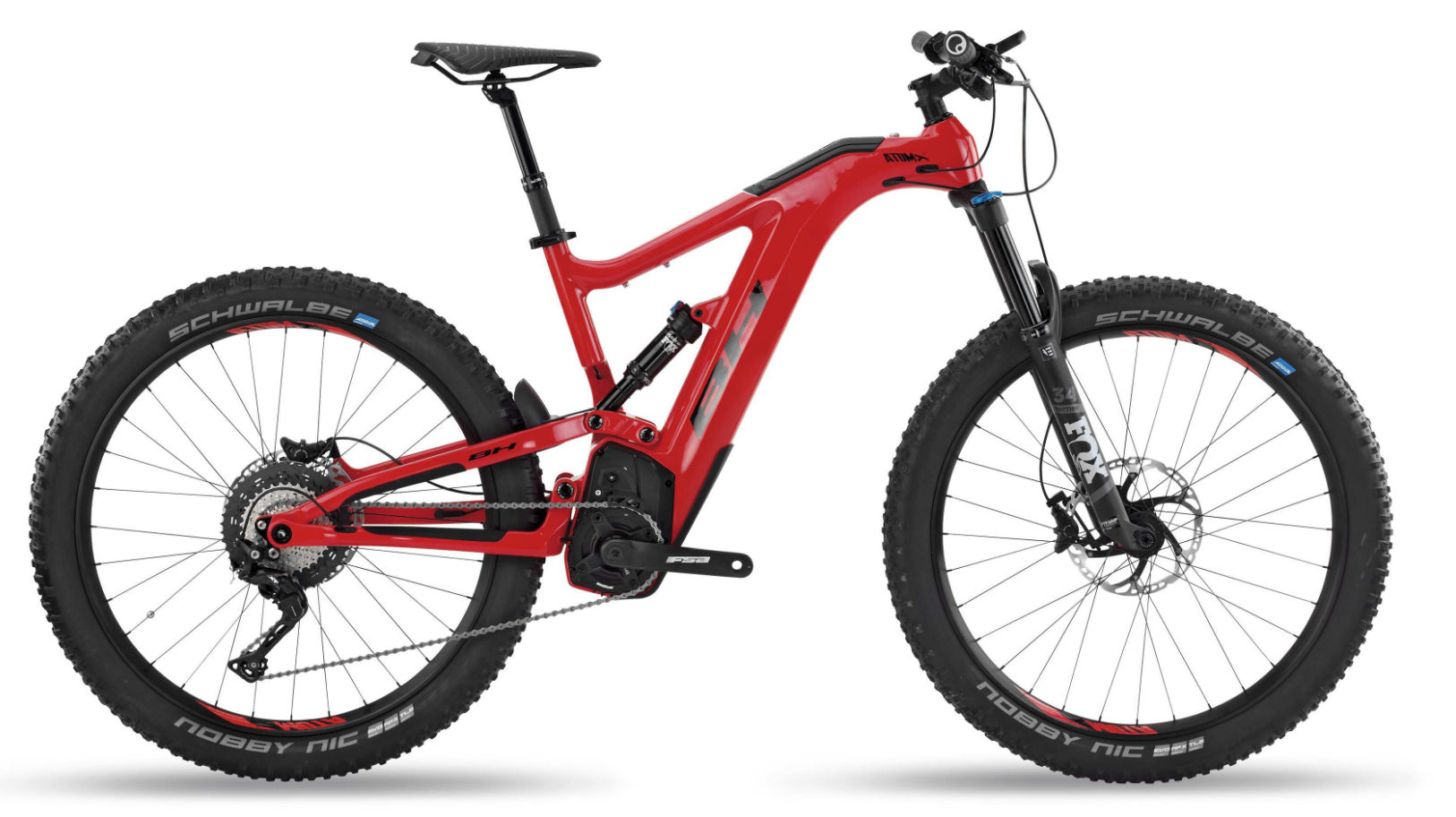

2019 BH Atom X Carbon Lynx 5 geometry
Full frame geometry for the 2019 BH Atom X Carbon Lynx 5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 601 | 448 | 75 | 67 | 95 | 606 | 450 | 461 | 1198 |
| L | 615 | 464 | 75 | 67 | 110 | 625 | 480 | 461 | 1219 |
| XL | 628 | 479 | 75 | 67 | 125 | 644 | 510 | 461 | 1240 |
All measurements in millimetres unless marked (°) for angles.
