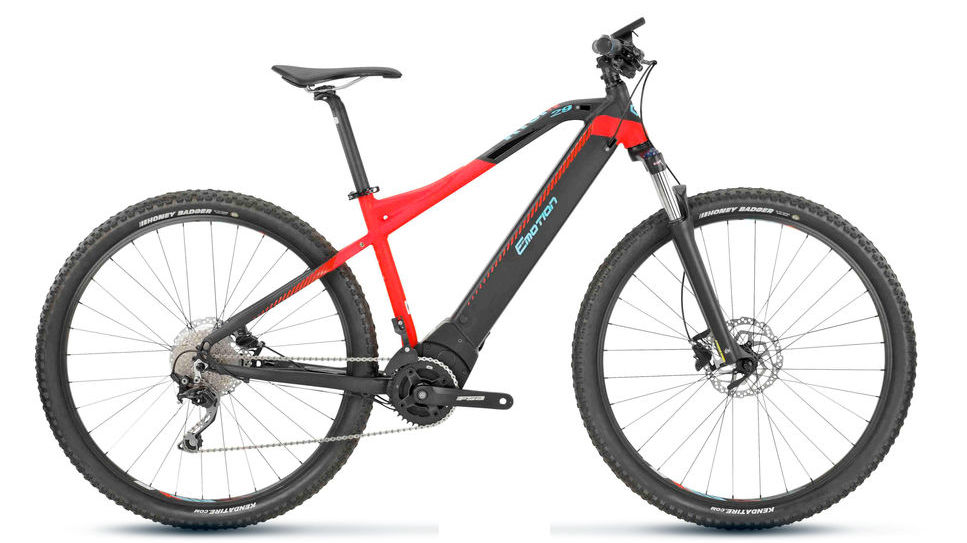

2018 BH Atom 29 geometry
Full frame geometry for the 2018 BH Atom 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Front centre (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 642 | 414 | 73 | 69 | 130 | 606 | 450 | 690 | 470 |
| S | 642 | 404 | 73 | 69 | 160 | 596 | 400 | 680 | 470 |
| L | 656 | 429 | 73 | 69 | 145 | 624 | 500 | 710 | 470 |
All measurements in millimetres unless marked (°) for angles.
