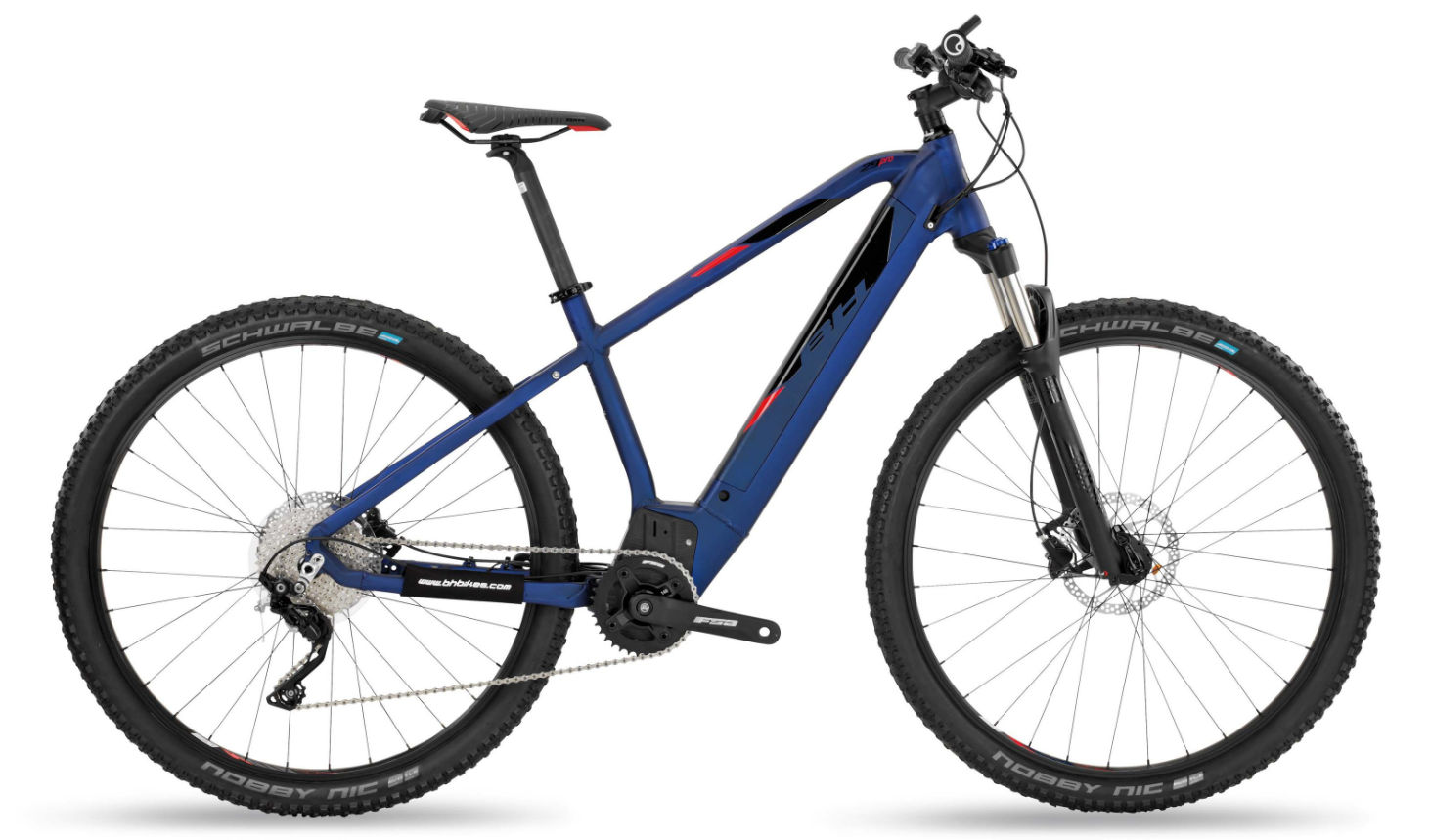

2018 BH Atom 29 Pro geometry
Full frame geometry for the 2018 BH Atom 29 Pro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| M | 660 | 402 | 73 | 69 | 150 | 604 | 450 | 470 |
| SM | 660 | 392 | 73 | 69 | 150 | 594 | 400 | 470 |
| L | 664 | 420 | 73 | 69 | 155 | 623 | 500 | 470 |
All measurements in millimetres unless marked (°) for angles.
