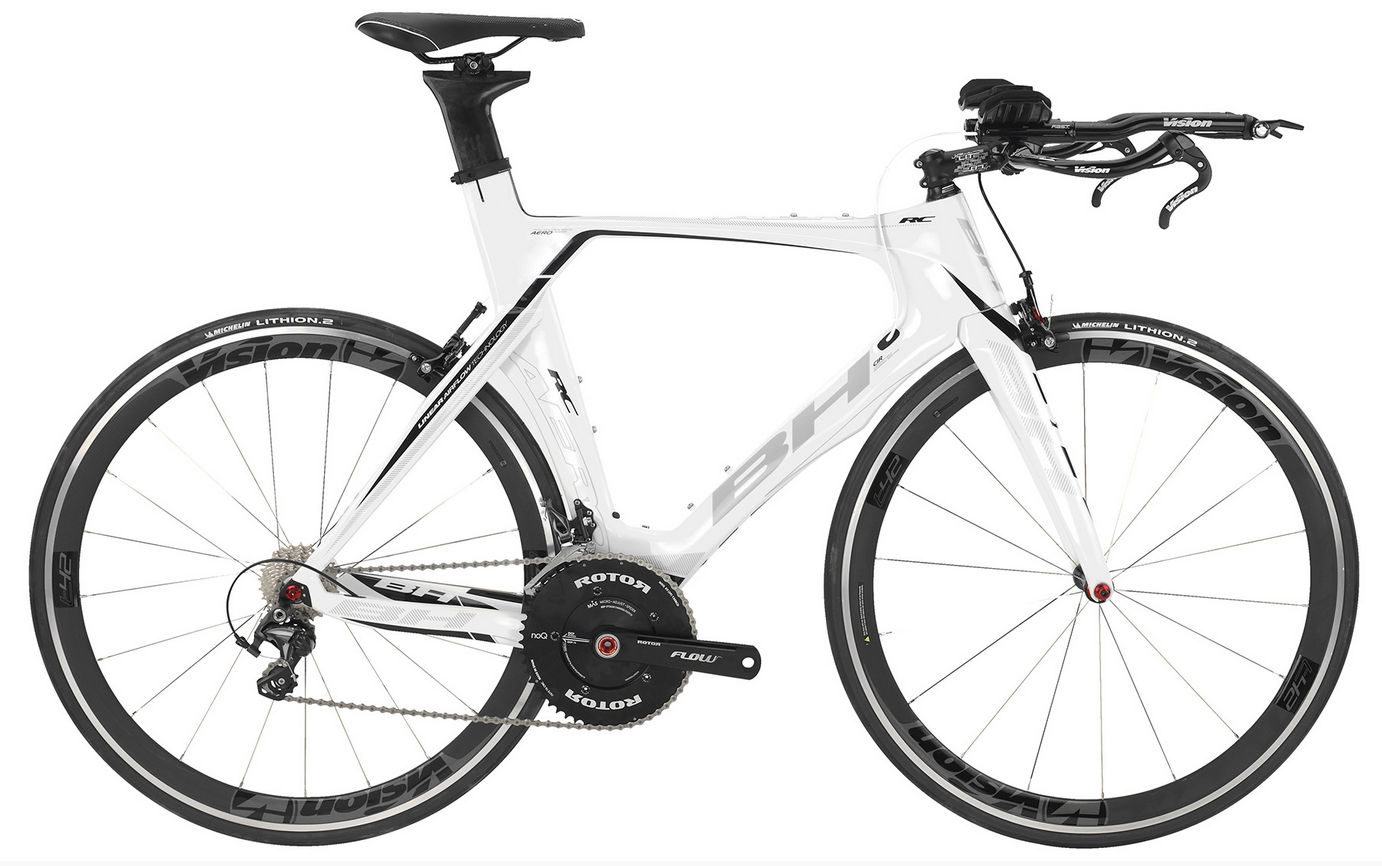

2015 BH Aerolight RC geometry
Full frame geometry for the 2015 BH Aerolight RC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 529 | 398 | 76 | 72.5 | 131 | 531 | 510 | 68 | 586 | 386 | 962 | 43 | 60 |
| M | 543 | 410 | 76 | 72.8 | 146 | 547 | 525 | 68 | 600 | 386 | 976 | 43 | 58 |
| L | 563 | 420 | 76 | 72.8 | 166 | 562 | 531 | 68 | 616 | 386 | 992 | 43 | 58 |
| XL | 582 | 432 | 76 | 72.8 | 186 | 579 | 560 | 68 | 634 | 386 | 1010 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
