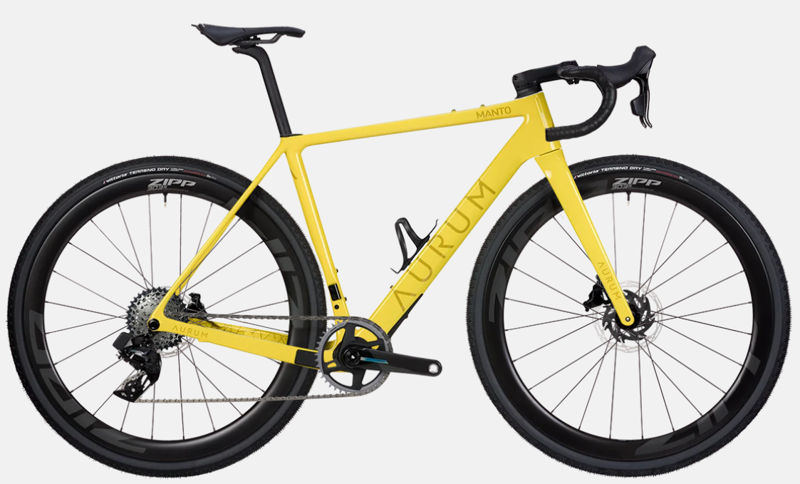

2023 Aurum Mentle geometry
Full frame geometry for the 2023 Aurum Mentle, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 515 | 380 | 74.5 | 71.2 | 518 | 425 | 77 | 587 | 423 | 998 | 50 | 66 |
| 51 | 535 | 386 | 74 | 71.2 | 539 | 455 | 77 | 600 | 423 | 1010 | 50 | 66 |
| 54 | 555 | 394 | 74 | 72.2 | 554 | 488 | 75 | 605 | 425 | 1019 | 50 | 60 |
| 56 | 570 | 402 | 73.5 | 72.3 | 571 | 515 | 75 | 617 | 425 | 1031 | 50 | 60 |
| 58 | 590 | 411 | 73.5 | 72.3 | 586 | 534 | 75 | 632 | 425 | 1046 | 50 | 60 |
All measurements in millimetres unless marked (°) for angles.
