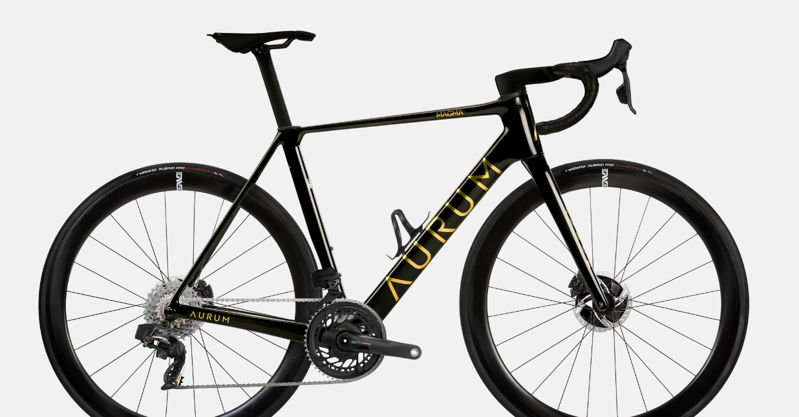

2024 Aurum Magma geometry
Full frame geometry for the 2024 Aurum Magma, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 371 | 75 | 71.8 | 103 | 506 | 435 | 721 | 74 | 570 | 408 | 967 | 50 | 60 |
| 51 | 525 | 377 | 74 | 72 | 126 | 527 | 446 | 751 | 71 | 581 | 408 | 979 | 50 | 60 |
| 54 | 545 | 386 | 74 | 73.1 | 140 | 542 | 502 | 780 | 71 | 580 | 410 | 980 | 44 | 59 |
| 56 | 570 | 393 | 73.5 | 73.1 | 166 | 562 | 526 | 804 | 71 | 595 | 410 | 994 | 44 | 59 |
| 58 | 592 | 401 | 73.3 | 73.2 | 189 | 579 | 549 | 826 | 71 | 608 | 410 | 1008 | 44 | 58 |
All measurements in millimetres unless marked (°) for angles.
