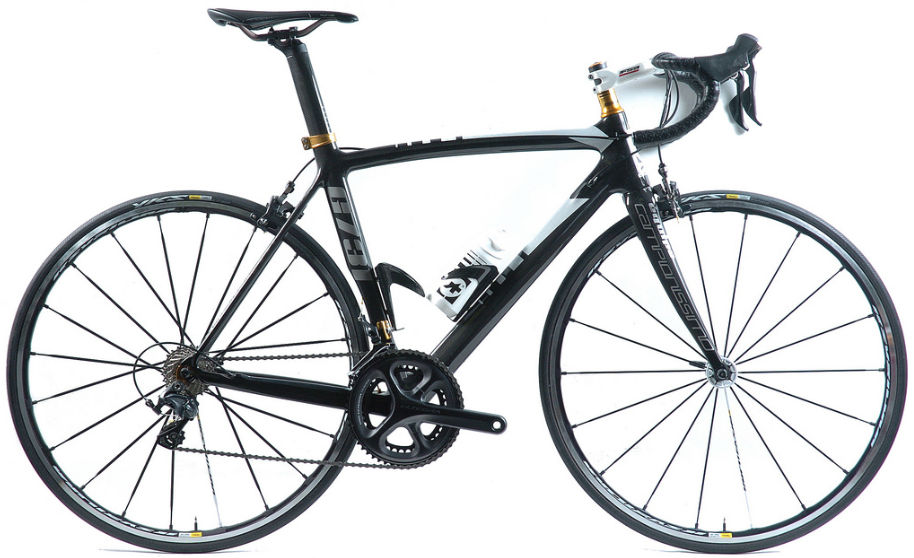

2015 Assos Goomah G.731 geometry
Full frame geometry for the 2015 Assos Goomah G.731, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 522 | 373 | 74.5 | 72 | 125 | 518 | 700 | 68 | 580 | 405 | 975 | 45 | 63 |
| 52.5 | 543 | 374 | 73.5 | 72.5 | 145 | 535 | 730 | 68 | 585 | 405 | 980 | 45 | 60 |
| 54.5 | 564 | 377 | 73 | 73 | 165 | 549 | 760 | 68 | 590 | 408 | 989 | 45 | 57 |
| 56.5 | 583 | 381 | 72.5 | 73 | 185 | 565 | 790 | 68 | 602 | 408 | 1000 | 45 | 57 |
All measurements in millimetres unless marked (°) for angles.
