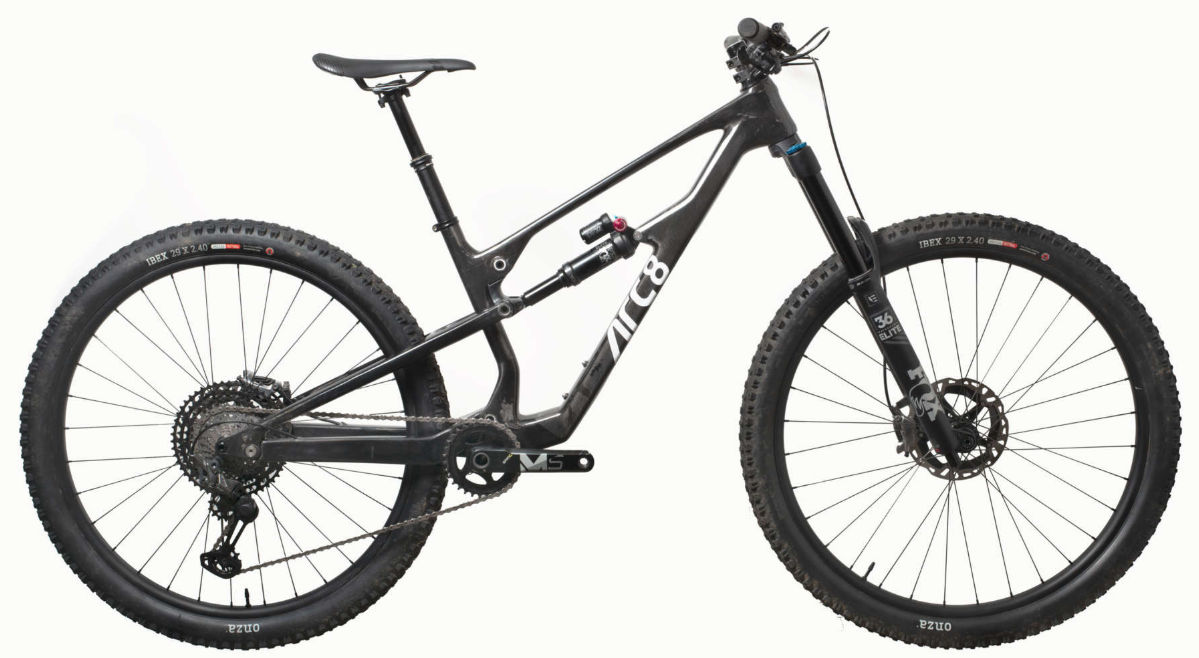

2019 Arc8 Extra geometry
Full frame geometry for the 2019 Arc8 Extra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 440 | 76 | 64 | 90 | 560 | 380 | 687 | 30 | 771 | 430 | 1199 | 42 | 137 |
| M | 611 | 465 | 76 | 64 | 100 | 617 | 400 | 689 | 30 | 800 | 430 | 1228 | 42 | 137 |
| L | 620 | 490 | 76 | 64 | 110 | 645 | 440 | 687 | 30 | 829 | 430 | 1257 | 42 | 137 |
All measurements in millimetres unless marked (°) for angles.
