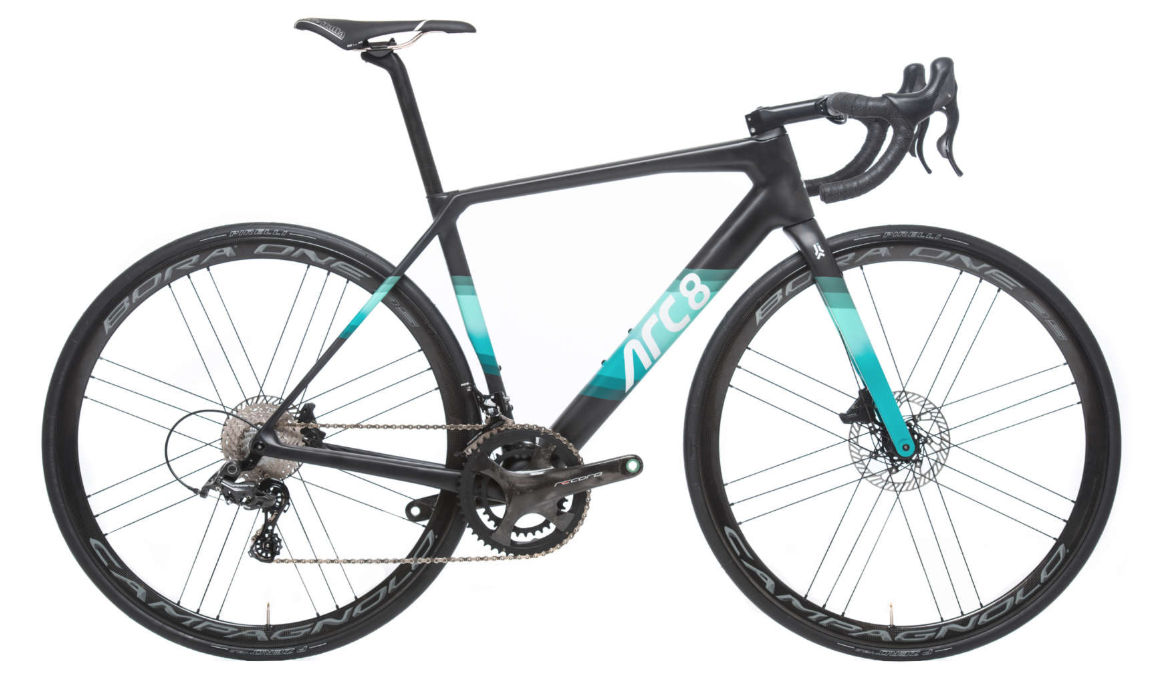

2019 Arc8 Escapee geometry
Full frame geometry for the 2019 Arc8 Escapee, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 505 | 357 | 73.5 | 70.5 | 103 | 506 | 422 | 720 | 71 | 568 | 402 | 960 | 50 | 67 |
| 51 | 522 | 369 | 73.5 | 72 | 116 | 523 | 453 | 745 | 71 | 587 | 402 | 978 | 50 | 58 |
| 54 | 541 | 380 | 73.5 | 72 | 135 | 540 | 477 | 767 | 71 | 591 | 402 | 982 | 50 | 58 |
| 57 | 560 | 393 | 73.5 | 72 | 156 | 558 | 499 | 788 | 71 | 608 | 402 | 1000 | 50 | 58 |
| 60 | 580 | 405 | 73.5 | 72 | 176 | 576 | 521 | 809 | 71 | 642 | 402 | 1034 | 50 | 58 |
All measurements in millimetres unless marked (°) for angles.
