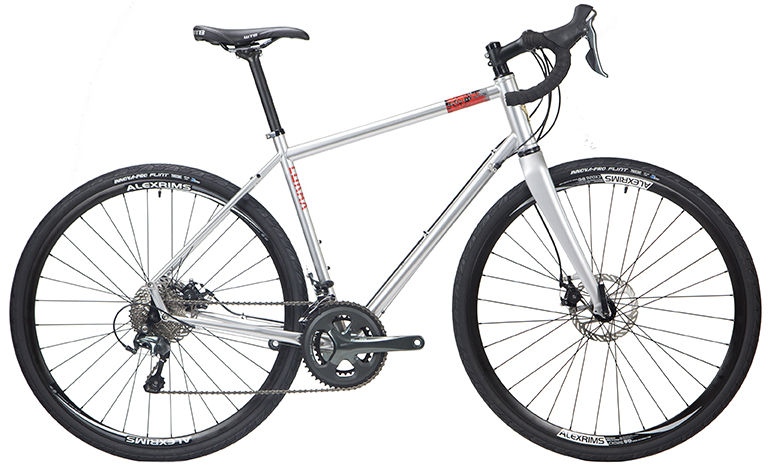

2016 Advocate Lorax geometry
Full frame geometry for the 2016 Advocate Lorax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 529 | 363 | 75 | 70 | 100 | 505 | 75 | 584 | 440 | 1016 | 50 | 74 |
| 52 | 557 | 365 | 74 | 71 | 125 | 525 | 75 | 586 | 440 | 1018 | 50 | 68 |
| 54 | 584 | 366 | 73 | 72 | 150 | 545 | 75 | 586 | 440 | 1018 | 50 | 61 |
| 56 | 608 | 379 | 73 | 72 | 175 | 565 | 75 | 607 | 440 | 1038 | 50 | 61 |
| 58 | 632 | 380 | 72 | 72 | 200 | 585 | 75 | 615 | 440 | 1046 | 50 | 61 |
| 61 | 651 | 394 | 72 | 72 | 220 | 605 | 75 | 635 | 440 | 1066 | 50 | 61 |
All measurements in millimetres unless marked (°) for angles.
