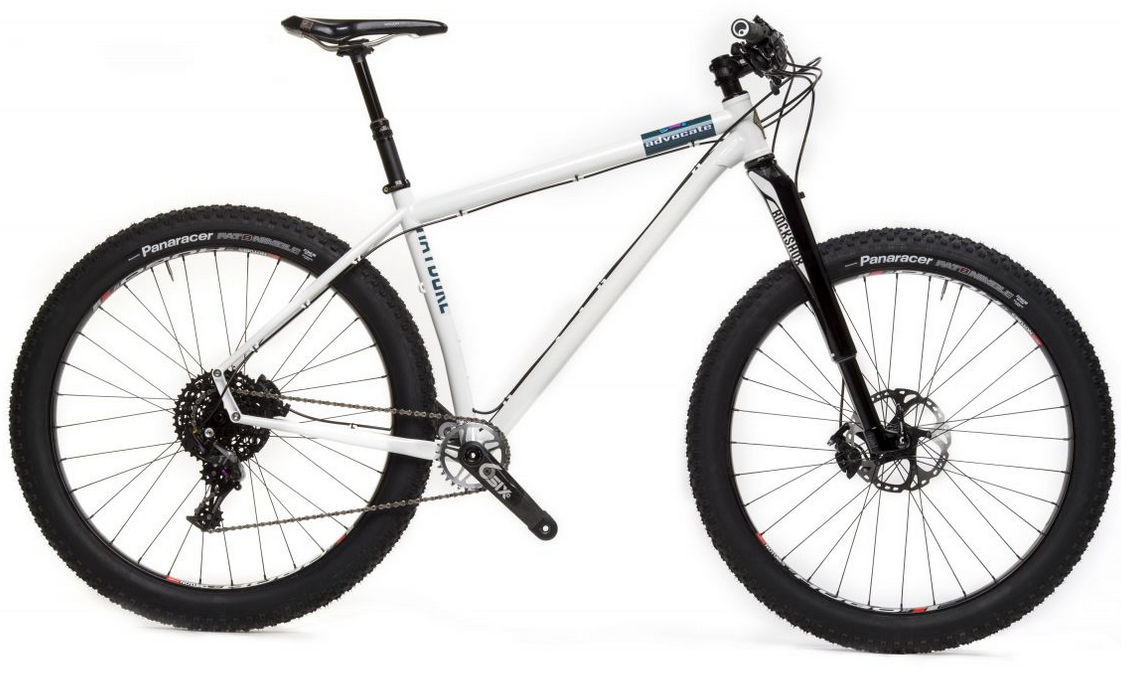

2015 Advocate Hayduke geometry
Full frame geometry for the 2015 Advocate Hayduke, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 404 | 73 | 68.5 | 100 | 590 | 380 | 60 | 430 | 1101 | 51 |
| L | 618 | 441 | 73 | 68.5 | 110 | 630 | 485 | 60 | 430 | 1141 | 51 |
| M | 618 | 421 | 73 | 68.5 | 110 | 610 | 435 | 60 | 430 | 1121 | 51 |
| SL | 627 | 458 | 73 | 68.5 | 120 | 650 | 530 | 60 | 430 | 1162 | 51 |
All measurements in millimetres unless marked (°) for angles.
