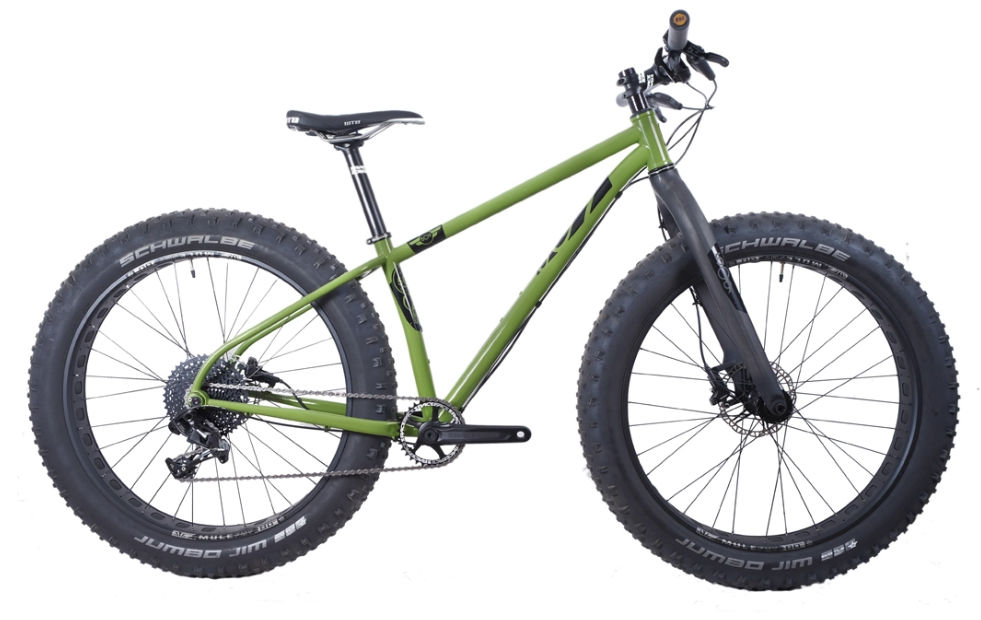

2018 509 Cycles Jabit III Steel geometry
Full frame geometry for the 2018 509 Cycles Jabit III Steel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 602 | 390 | 73 | 70 | 100 | 575 | 370 | 768 | 60 | 645 | 445 | 1083 |
| S | 607 | 399 | 73 | 70 | 105 | 585 | 390 | 781 | 60 | 655 | 445 | 1093 |
| M | 617 | 416 | 73 | 70 | 115 | 605 | 445 | 815 | 60 | 676 | 445 | 1114 |
| L | 631 | 437 | 73 | 70 | 130 | 630 | 495 | 848 | 60 | 702 | 445 | 1140 |
All measurements in millimetres unless marked (°) for angles.
