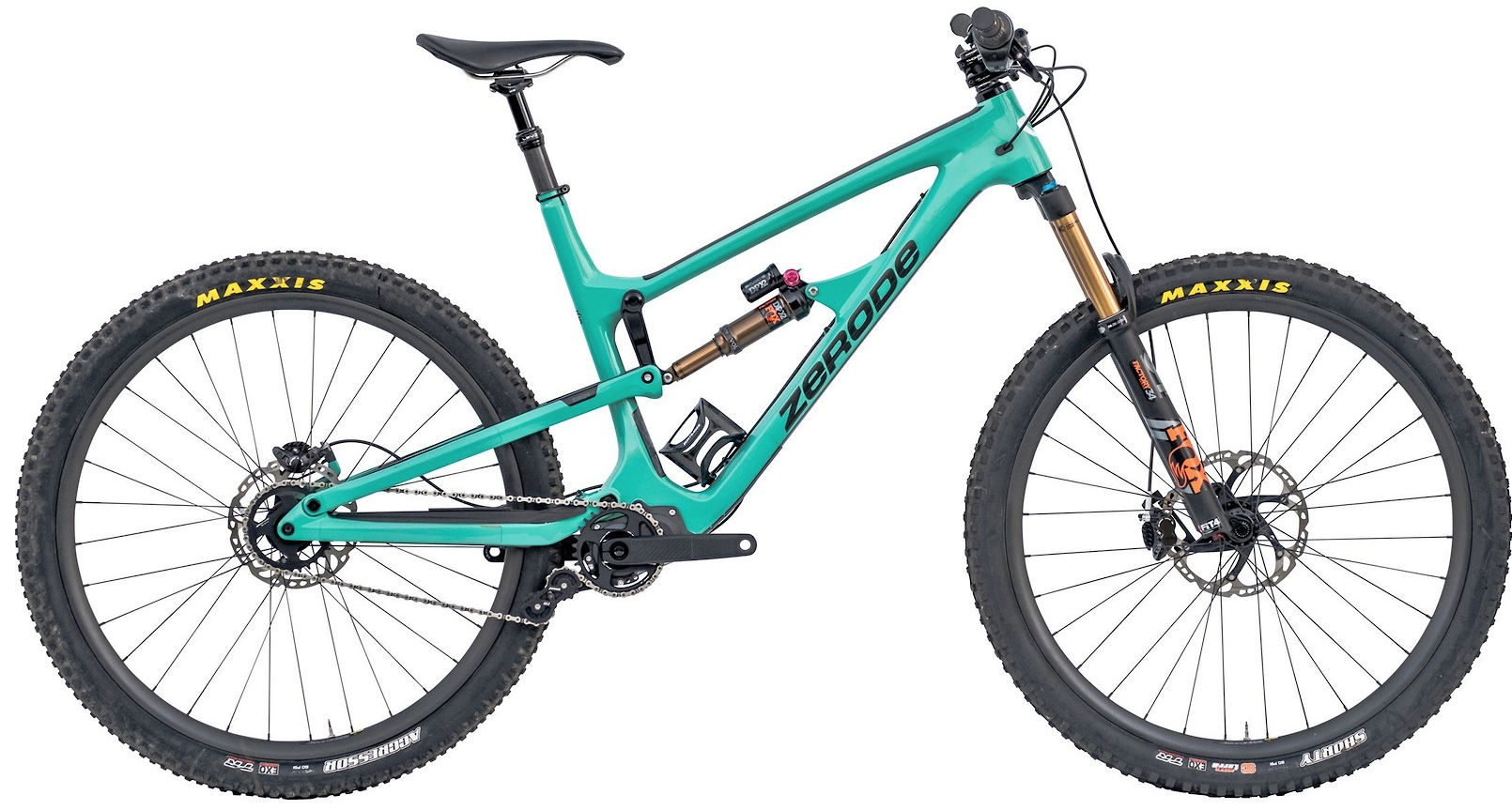

2019 Zerode Katipo Trail geometry
Full frame geometry for the 2019 Zerode Katipo Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 475 L | 603 | 475 | 46 | 65 | 110 | 460 | 29 | 444 | 1240 |
| 505 XL | 612 | 505 | 46 | 65 | 120 | 490 | 29 | 444 | 1274 |
All measurements in millimetres unless marked (°) for angles.
