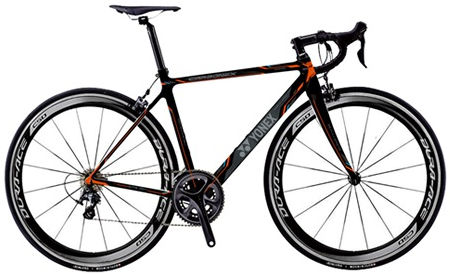

2014 Yonex Carbonex MKI geometry
Full frame geometry for the 2014 Yonex Carbonex MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 377 | 74.5 | 72 | 115 | 520 | 470 | 714 | 68 | 574 | 405 | 969 | 45 | 62 |
| S | 522 | 385 | 74 | 72.5 | 120 | 535 | 500 | 731 | 68 | 580 | 405 | 975 | 45 | 59 |
| M | 543 | 389 | 73.5 | 73 | 140 | 550 | 530 | 754 | 68 | 585 | 405 | 981 | 45 | 56 |
All measurements in millimetres unless marked (°) for angles.
