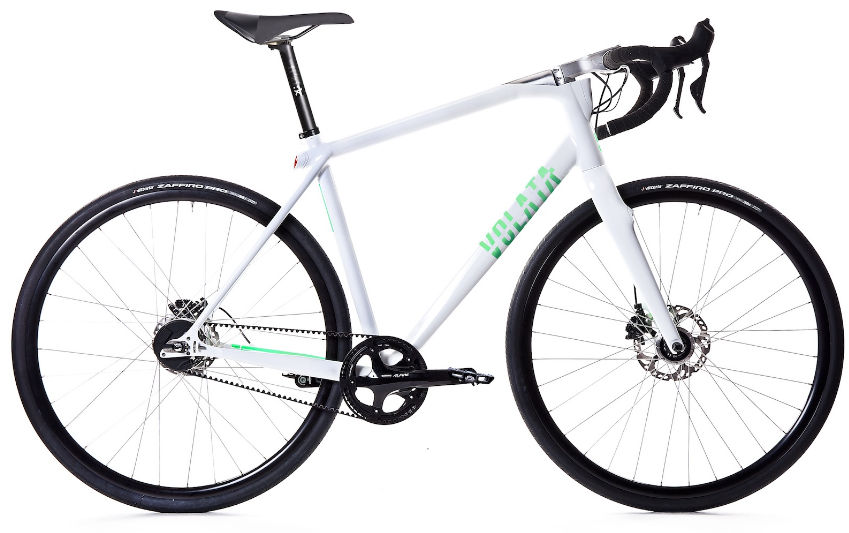

2017 Volata 1 geometry
Full frame geometry for the 2017 Volata 1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 347 | 74.5 | 70 | 161 | 512 | 475 | 809 | 73 | 583 | 432 | 1011 | 45 | 78 |
| M | 615 | 351 | 73 | 70.5 | 181 | 539 | 490 | 830 | 72 | 589 | 432 | 1017 | 45 | 75 |
| L | 643 | 353 | 73 | 71.5 | 206 | 549 | 530 | 865 | 72 | 589 | 443 | 1028 | 45 | 68 |
| XL | 677 | 359 | 72.5 | 72 | 241 | 572 | 565 | 903 | 70 | 601 | 443 | 1040 | 45 | 65 |
All measurements in millimetres unless marked (°) for angles.
