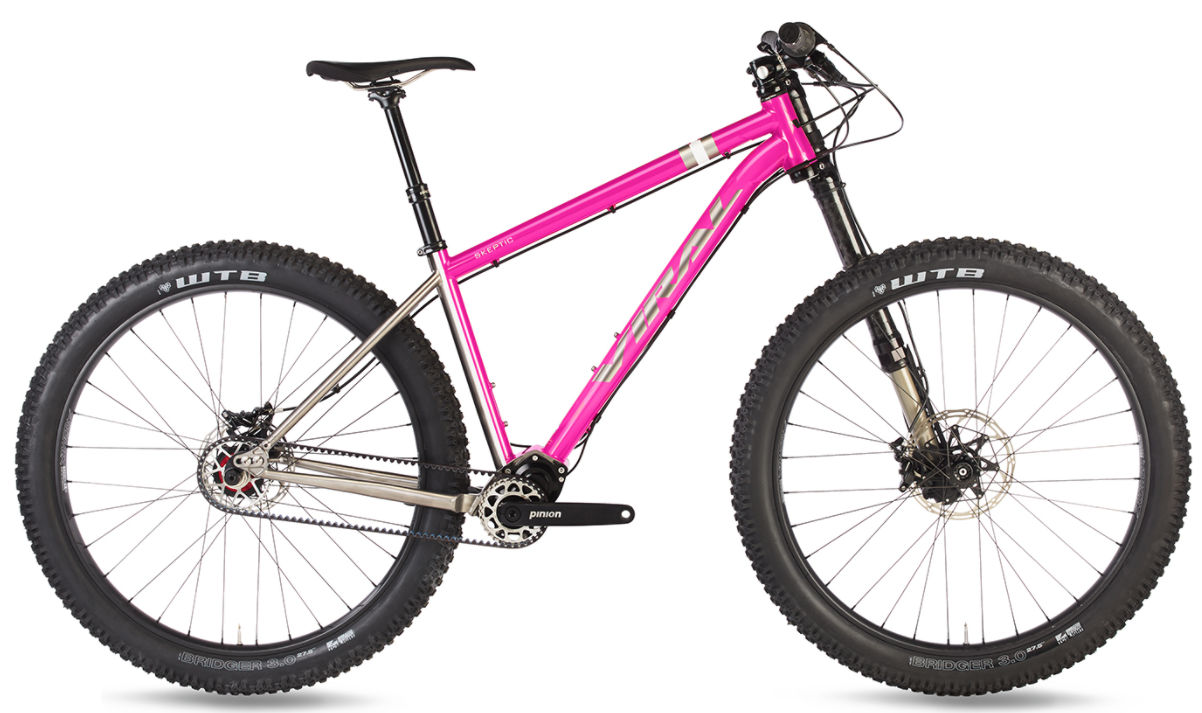

2017 Viral Skeptic 130mm geometry
Full frame geometry for the 2017 Viral Skeptic 130mm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 406 | 73.5 | 67.5 | 110 | 584 | 390 | 35 | 696 | 430 | 1124 |
| M | 642 | 415 | 73.5 | 67.5 | 115 | 605 | 432 | 55 | 715 | 435 | 1145 |
| L | 651 | 432 | 73.5 | 67.5 | 125 | 625 | 480 | 55 | 736 | 435 | 1166 |
| XL | 665 | 448 | 73.5 | 67.5 | 140 | 645 | 520 | 55 | 758 | 435 | 1187 |
All measurements in millimetres unless marked (°) for angles.
