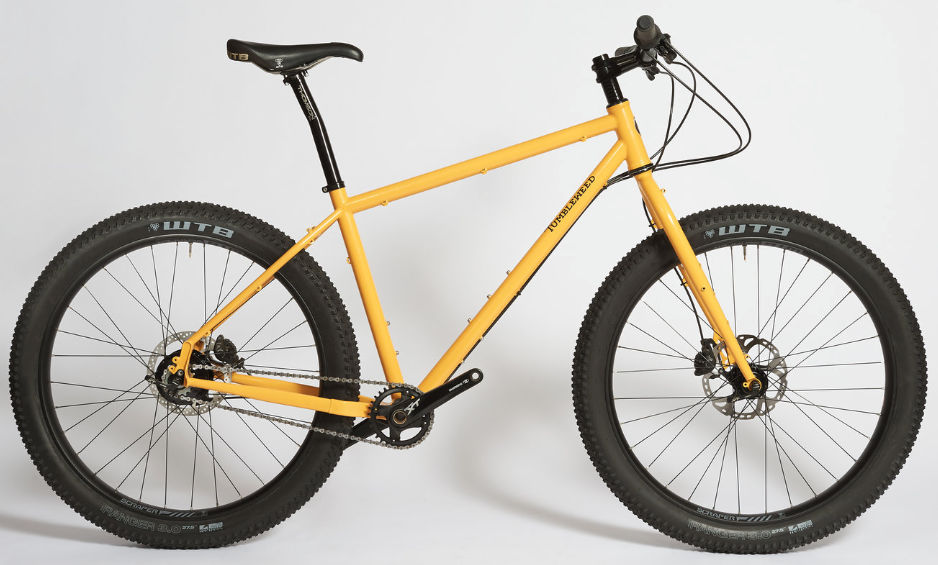

2018 Tumbleweed Prospector geometry
Full frame geometry for the 2018 Tumbleweed Prospector, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 613 | 397 | 72.5 | 69.5 | 110 | 590 | 756 | 64 | 662 | 458 | 1113 | 53 | 88 |
| M | 622 | 414 | 72.5 | 69.5 | 120 | 610 | 808 | 64 | 682 | 458 | 1133 | 53 | 88 |
| L | 636 | 430 | 72.5 | 69.5 | 135 | 630 | 838 | 64 | 703 | 458 | 1154 | 53 | 88 |
| XL | 650 | 445 | 72.5 | 69.5 | 150 | 650 | 873 | 64 | 724 | 458 | 1175 | 53 | 88 |
All measurements in millimetres unless marked (°) for angles.
